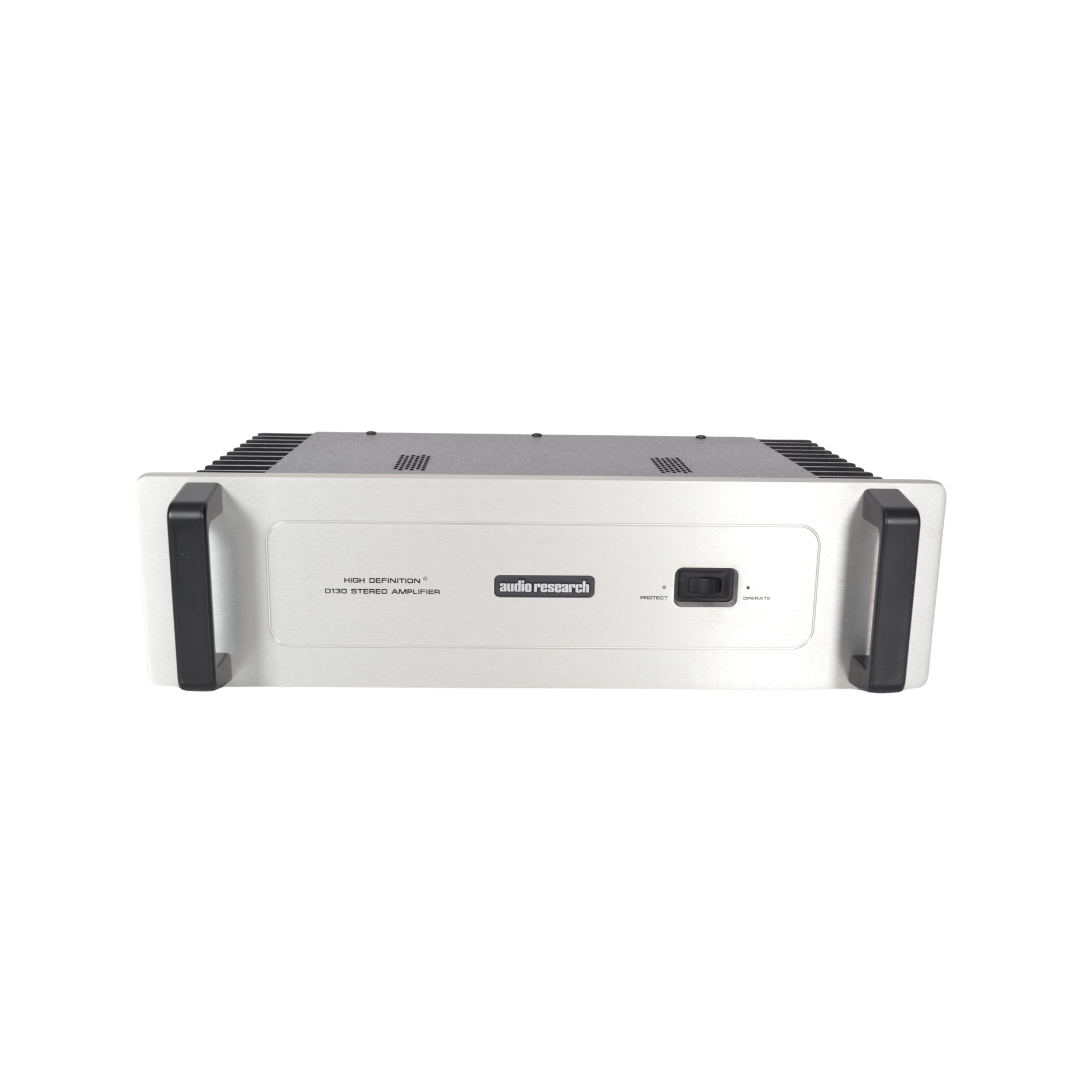

Audio Research D130 Stereo Power Amplifier
Manufactured by Audio Research, the D130 is a high-performance stereo power amplifier designed to deliver wide bandwidth, excellent control and low noise performance. Built around a robust solid-state output stage and a substantial power supply, the D130 was engineered to provide stable output across demanding loudspeaker loads while maintaining the transparency and musicality associated with Audio Research components.
With a rated output of 130 watts per channel into 8 ohms and 200 watts per channel into 4 ohms, the amplifier offers ample power for a wide range of loudspeakers. Its wide power bandwidth extending to 150 kHz, combined with high slew rate and low distortion performance, allows the D130 to reproduce musical transients with precision and clarity.
The amplifier also features both balanced and unbalanced inputs, high input impedance for easy system integration, and a well-regulated power supply incorporating substantial capacitance to maintain dynamic stability during demanding passages.
Key Features
-
High-current stereo power amplifier
-
130 watts per channel into 8Ω
-
200 watts per channel into 4Ω
-
Balanced and unbalanced inputs
-
Wide bandwidth design
-
High slew rate for fast transient response
-
Large power supply with 104,000 µF capacitance
-
High damping factor for improved loudspeaker control
Specifications
| Specification | Detail |
|---|---|
| Power Output | 130 W per channel into 8Ω |
| 200 W per channel into 4Ω | |
| Power Bandwidth (-3 dB) | DC – 150 kHz into 8Ω |
| Input Sensitivity | 1.7 V RMS for rated output (25.5 dB gain) |
| Input Impedance | 150 kΩ unbalanced / 300 kΩ balanced differential |
| Input Polarity | Non-inverting at unbalanced inputs; balanced pin 2+ (IEC-268) |
| Output Regulation | 0.08 dB from 8Ω load to open circuit |
| Damping Factor | 100 |
| Negative Feedback | 21 dB |
| Slew Rate | 50 V/µs |
| Rise Time | 1.7 µs |
| Hum & Noise | < 55 µV RMS (115 dB below rated output, IHF A-weighted) |
| Power Supply Capacitance | 104,000 µF total |
| Power Requirements | 105–125 VAC 60 Hz or 210–250 VAC 50 Hz |
| Power Consumption | 400 W at 130 WPC (8Ω), 640 W at 200 WPC (4Ω), 800 W maximum, 75 W idle |
| Dimensions (W × H × D) | 19″ (48 cm) × 5¼” (13.4 cm) × 8⅜” (21.3 cm) |
| Handle Extension | 1½” (3.8 cm) forward of front panel |
| Rear Connector Extension | 1″ behind rear panel |
| Weight | 27.3 lbs (12.4 kg) |
The Audio Research D130 combines substantial output power, wide bandwidth and high-current capability in a compact chassis. With balanced connectivity, a large power supply and excellent measured performance, it remains a capable power amplifier for high-quality two-channel audio systems.
Condition: Good
Colour: Silver face, Black body
Note: Product does not include additional accessories or original packaging
