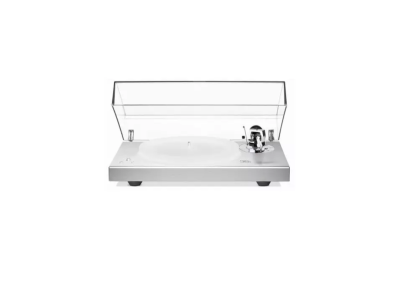

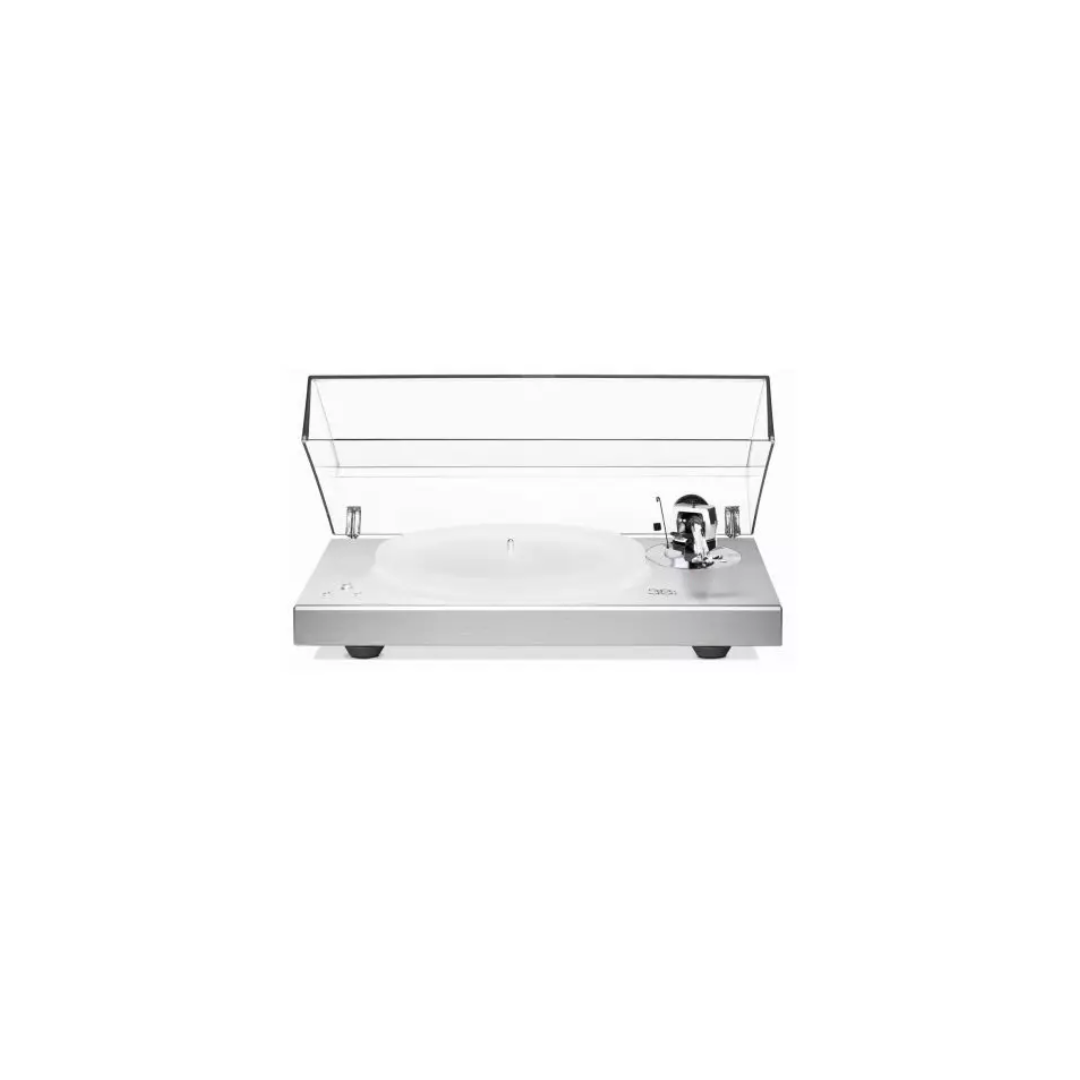

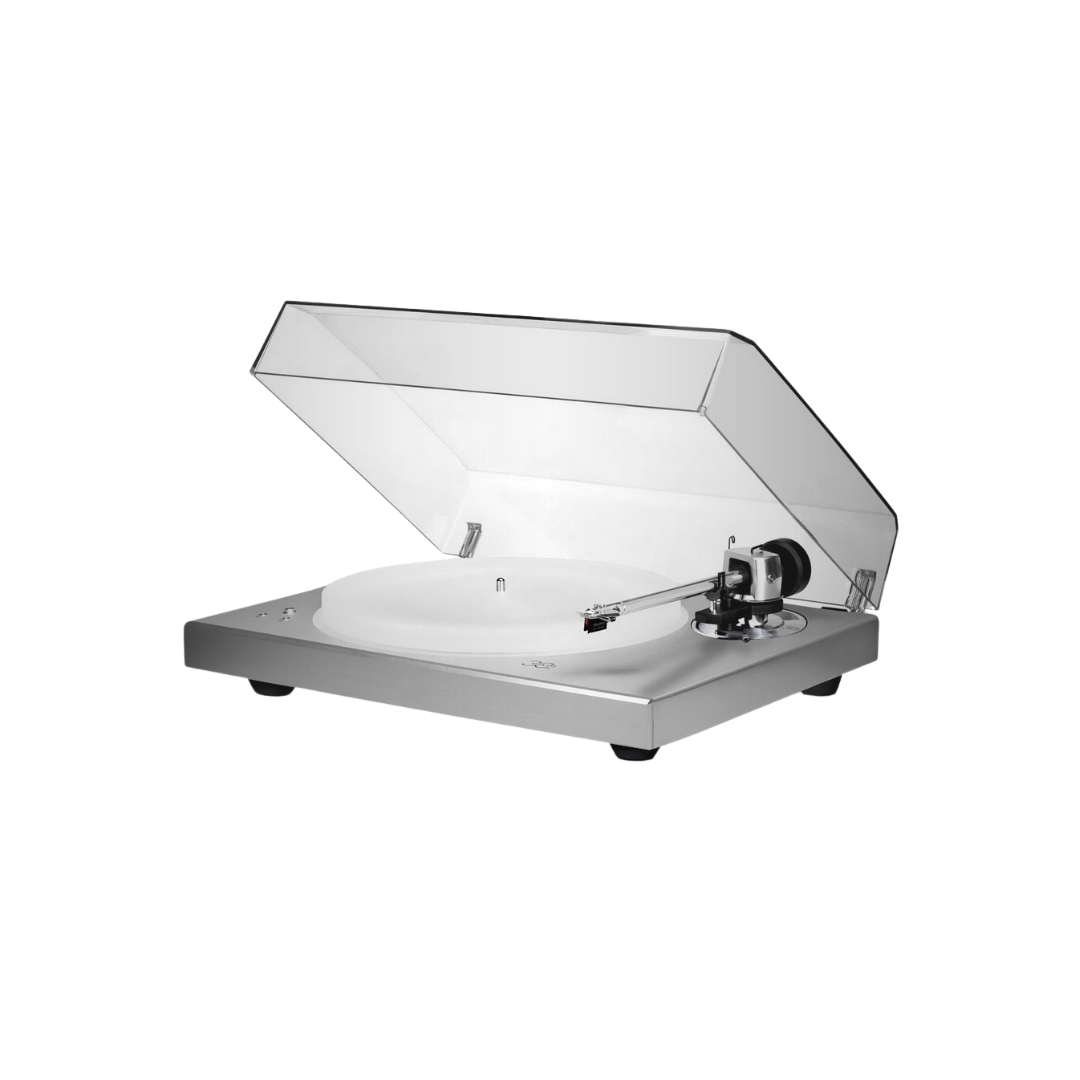

AVM Rotation R30.3 Turntable

AVM Rotation R 30.3 Turntable

The AVM Rotation R 30.3 is a high-quality European-built turntable and the youngest member of AVM’s Rotation turntable family. It was developed as an analogue complement to the AVM 30 range of components introduced as part of the company’s 30th anniversary celebrations.

The R 30.3 combines a substantial composite chassis with a 20mm acrylic platter, a proprietary 9-inch AVM tonearm and a servo-controlled belt-drive system. The tonearm is the same design used on the R 2.3 and is supplied with an Ortofon 2M Blue MM cartridge.

Design

• Single-motor belt-drive turntable
• 9-inch AVM tonearm
• Gimbal-mounted tonearm
• 35mm HDF composite chassis
• Polished aluminium reinforcement
• Four height-adjustable damping feet
• Removable/hinged acrylic dust cover
• White platter illumination
• Dimmable and switchable platter lighting
• 33/45 RPM operation with Look-Forward Servo control

Platter

• 20mm acrylic platter
• Internally illuminated
• Precision inverted bearing
• Platter illumination operated via a concealed button beneath the frame

Tonearm

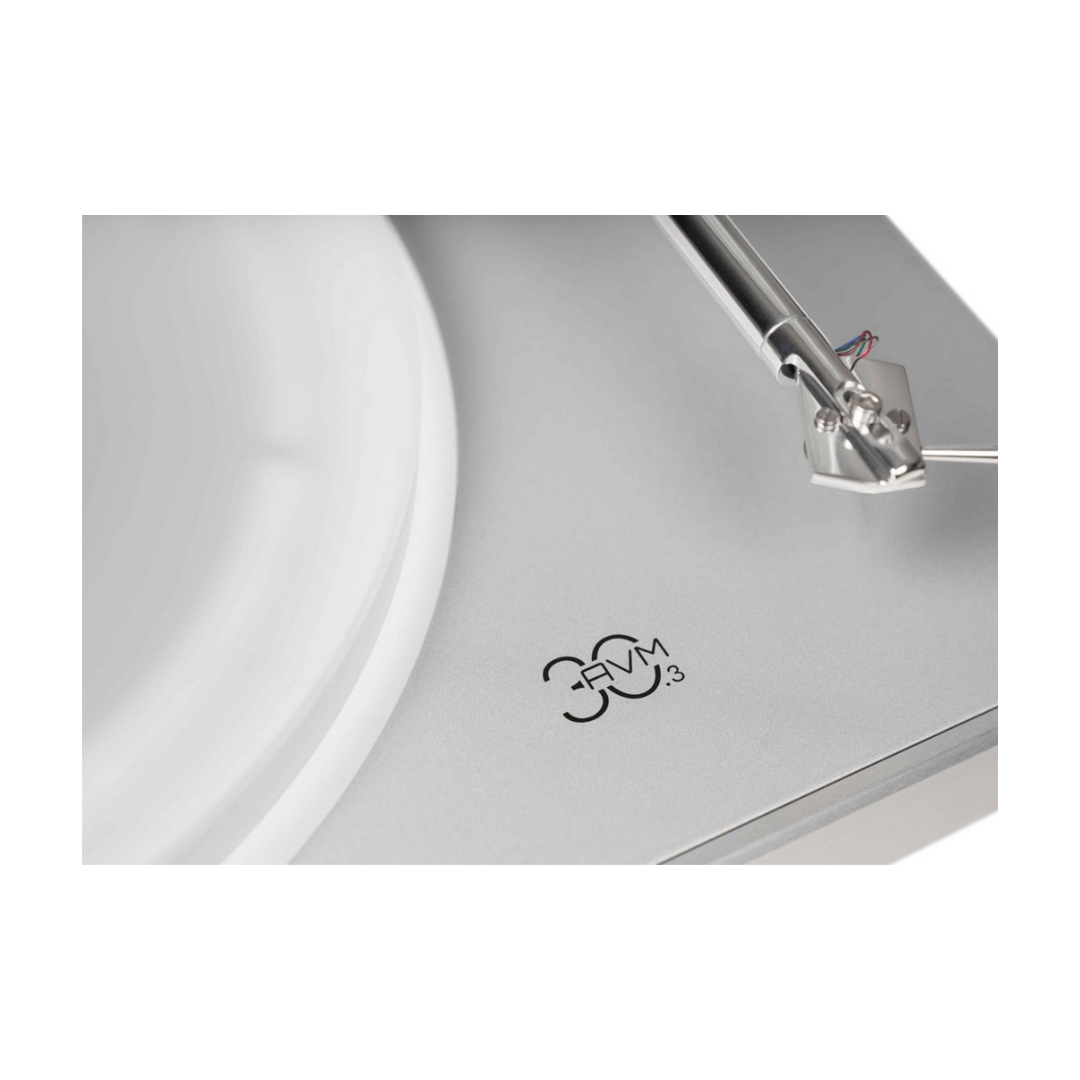

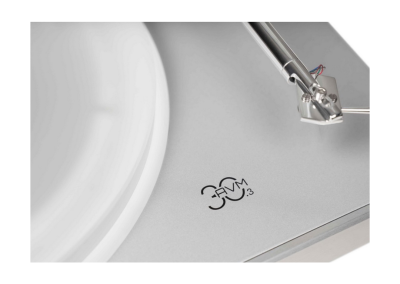

The R 30.3 uses AVM’s proprietary 9-inch aluminium tonearm, which is also used on the R 2.3.

• Effective tonearm length: 230mm
• Effective tonearm mass: 13.5g
• Overhang: 18mm
• Tracking force range: 0–35mN / 0–3.5g
• Compatible with cartridges weighing 6–14g
• Supplied counterweight suitable for cartridges weighing 6–14g

The tonearm is constructed from polished aluminium components and incorporates a precise tonearm bearing. The supplied counterweight incorporates silicone damping.

Cartridge

• Ortofon 2M Blue MM cartridge
• Supplied pre-installed

Speed & Performance

• 33 RPM: ±0.15% maximum speed variation
• 45 RPM: ±0.13% maximum speed variation
• Wow & Flutter at 33 RPM: ±0.12% maximum
• Wow & Flutter at 45 RPM: ±0.10% maximum
• Signal-to-noise ratio: 70dB

Chassis Construction

The R 30.3’s frame is constructed from HDF (High-Density Fibreboard) composite material, combined with aluminium components.

The layered construction forms a vibration-absorbing structure designed to provide a solid, low-resonance foundation for the platter and tonearm.

Physical Specifications

Dimensions (W × H × D):

• 462 × 155 × 350mm

Weight:

• 9kg

The AVM Rotation R 30.3 combines AVM’s substantial composite chassis construction with a 20mm acrylic platter, proprietary 9-inch tonearm and electronically controlled belt-drive system. Supplied with an Ortofon 2M Blue MM cartridge, it provides a ready-to-play analogue source while retaining the mechanical refinement and construction approach associated with AVM’s higher-level Rotation models.

A European-built belt-drive turntable featuring a 20mm acrylic platter, 9-inch AVM tonearm, 35mm HDF composite chassis, Look-Forward Servo speed control, and an Ortofon 2M Blue MM cartridge.

Condition: Good

Colour: Silver

Note: Product includes original packaging and accessories. Ortofon 2M Blue MM Cartridge pre-installed.
