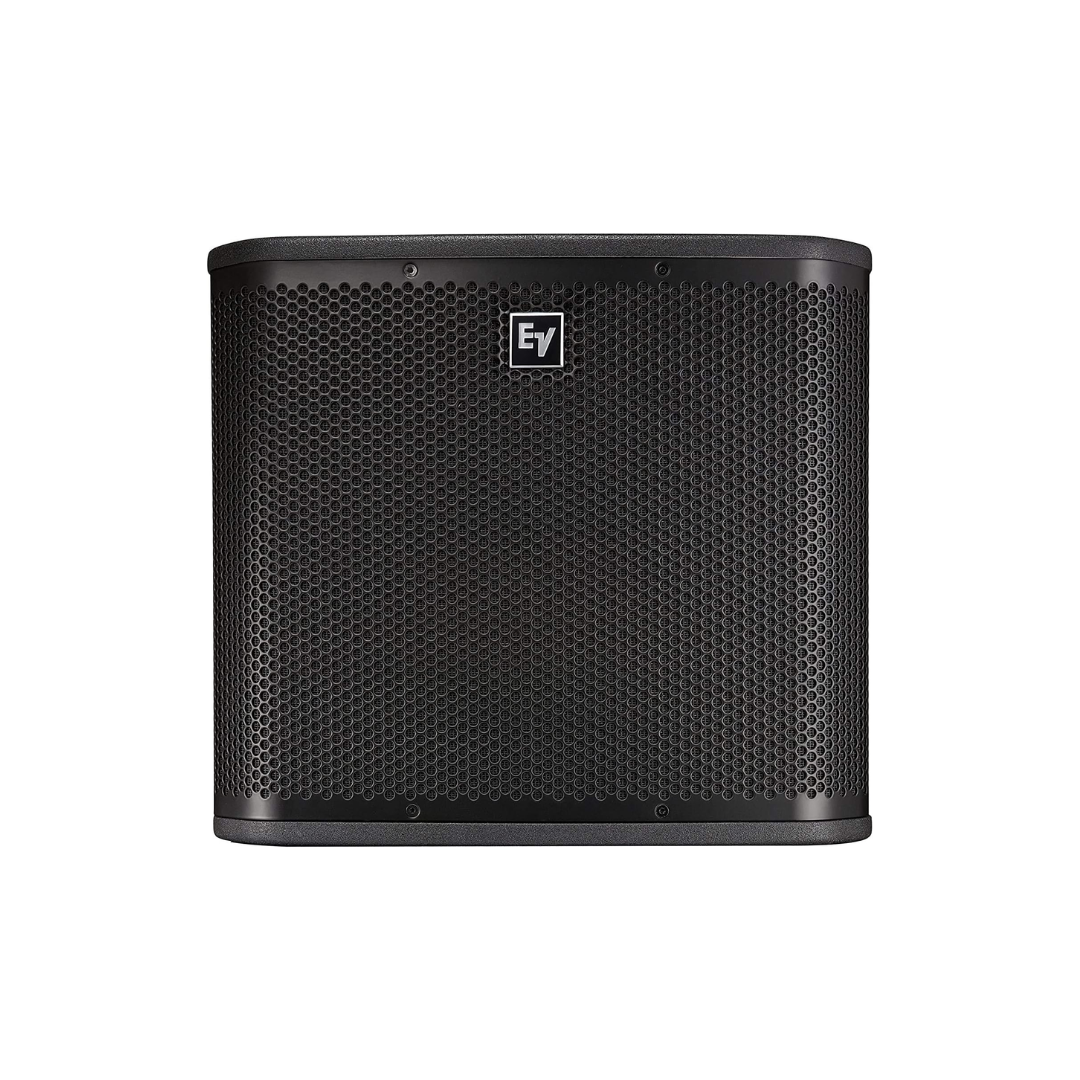

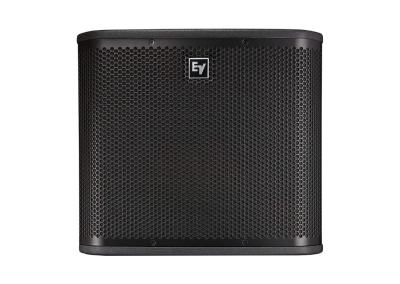

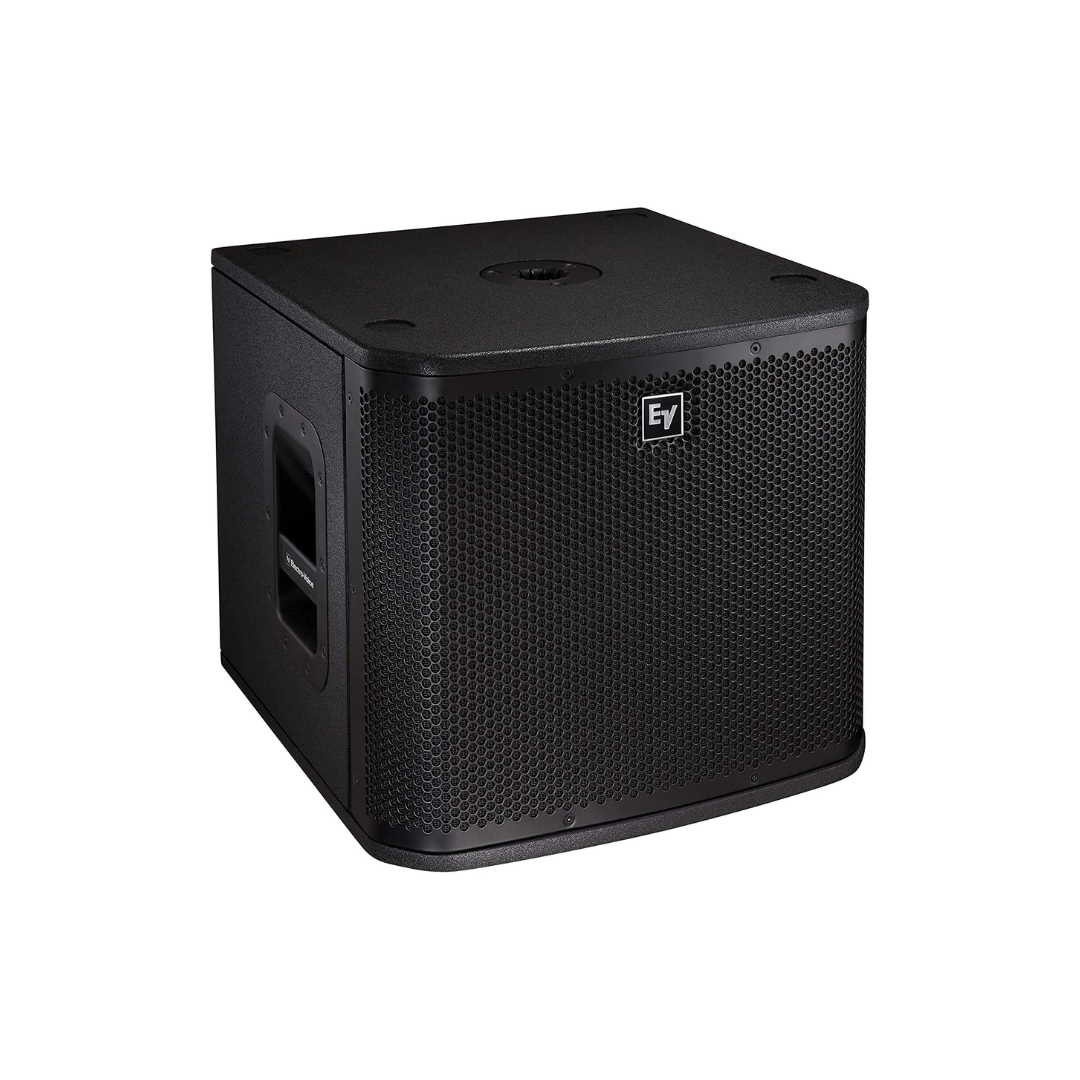

Electro Voice ZXA1 Subwoofer

The Electro-Voice ZXA1-Sub is a compact powered subwoofer engineered for portable PA systems, DJ rigs, live sound reinforcement, and compact event setups where portability and high output are equally important. Designed as the low-frequency companion to Electro-Voice’s popular ZXA1 full-range speakers, the ZXA1-Sub delivers substantial bass performance from a remarkably compact enclosure.

At the heart of the system is a 305mm (12-inch) EVS-12S woofer powered by a lightweight 700W Class D amplifier. The amplifier incorporates integrated DSP protection, selectable EQ modes, and crossover management to optimise reliability and low-frequency performance in demanding portable applications.

Unlike many larger touring subwoofers prioritising sheer output above all else, the ZXA1-Sub focuses on:

• portability,
• fast setup,
• compact footprint,
• and practical performance for small-to-medium venues.

Specifications

• Type: Powered active subwoofer
• Amplifier Power: 700W Class D amplifier
• LF Driver:
  • 1 × EVS-12S 305mm (12″) woofer
• Frequency Response (-3dB):
  • 53Hz – 93Hz
• Frequency Range (-10dB):
  • 44Hz – 118Hz
• Maximum SPL:
  • 126dB
• Crossover Frequency:
  • 100Hz
• Coverage Pattern:
  • Omnidirectional

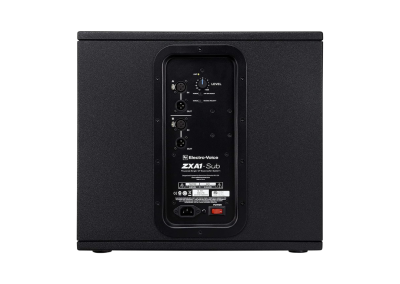

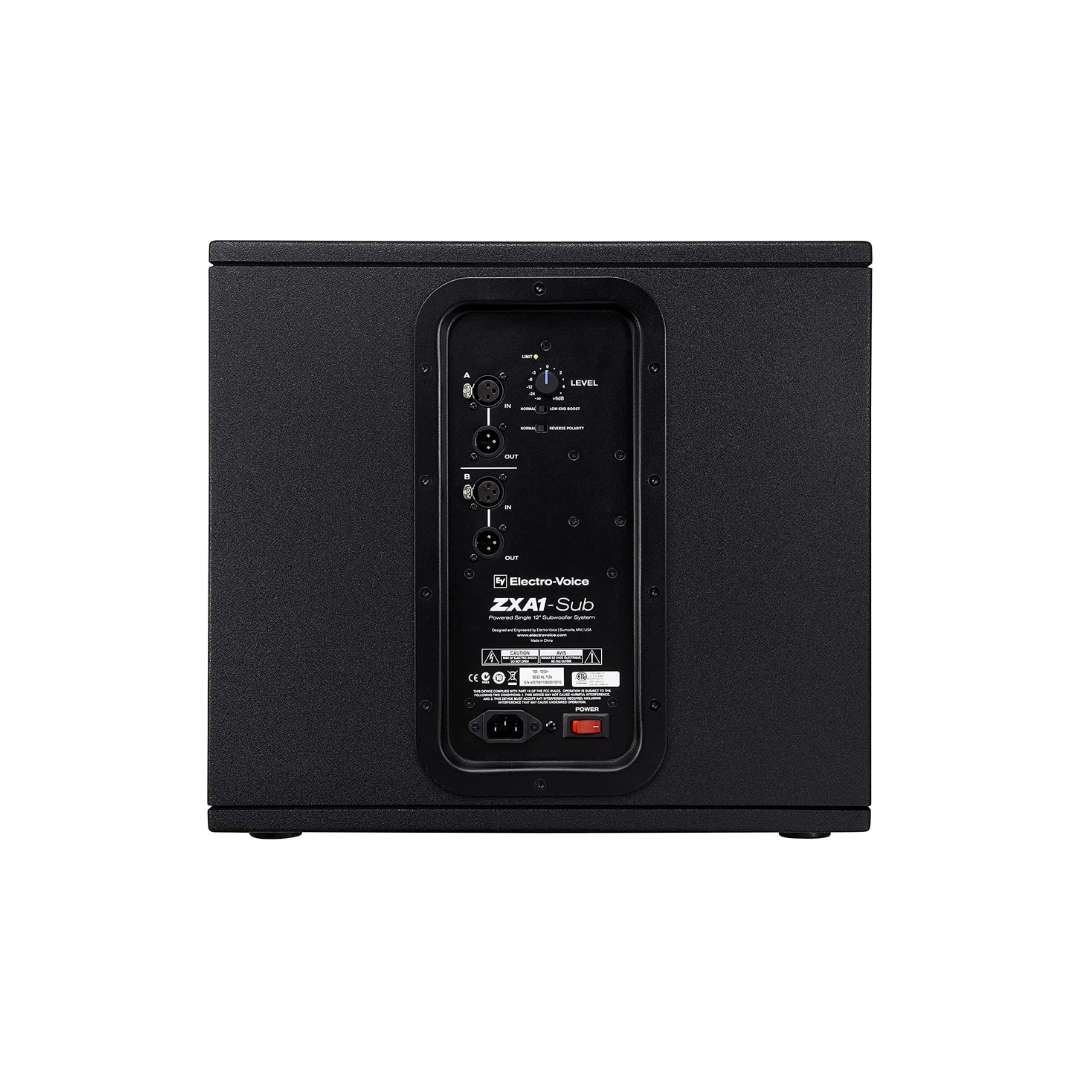

Inputs & Outputs

• Inputs:
  • 2 × XLR stereo inputs
• Outputs:
  • 2 × XLR stereo outputs
• Features:
  • Switchable EQ modes
  • Selectable polarity switch
  • LED power and limiter indicators
  • Pole mount socket for full-range speaker mounting

In practical use, the ZXA1-Sub is widely appreciated for delivering:

• impressive low-frequency output relative to its size,
• easy transportability,
• and quick deployment for mobile applications.

Community feedback consistently highlights its effectiveness for:

• smaller DJ events,
• wedding systems,
• acoustic/live music reinforcement,
• and compact portable rigs where space and transport weight matter.

Its compact dimensions and relatively lightweight plywood enclosure make it especially attractive for mobile operators seeking a more manageable alternative to larger 15-inch or 18-inch subwoofers, while still achieving meaningful low-frequency reinforcement.

The integrated crossover and XLR pass-through connections also simplify system integration, allowing direct connection to powered top speakers without requiring extensive external processing.

A compact professional powered subwoofer combining portability, solid output capability, and practical real-world usability for mobile sound reinforcement systems.

Condition: Fair

Colour: Black

NOTE: This product does not include the original packaging and accessories
