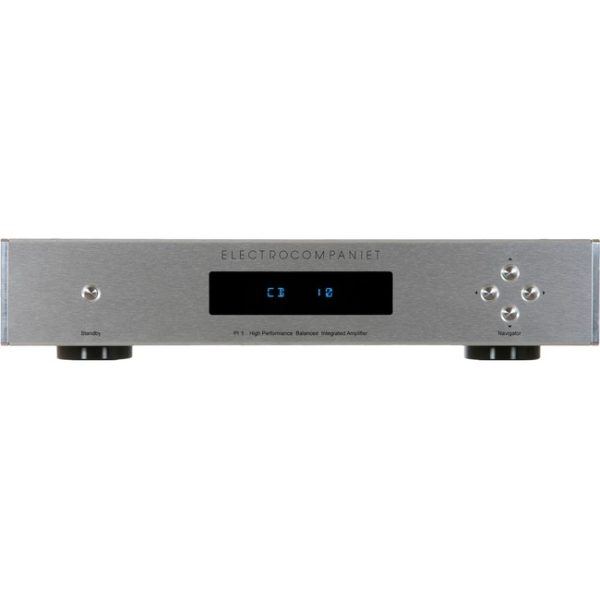

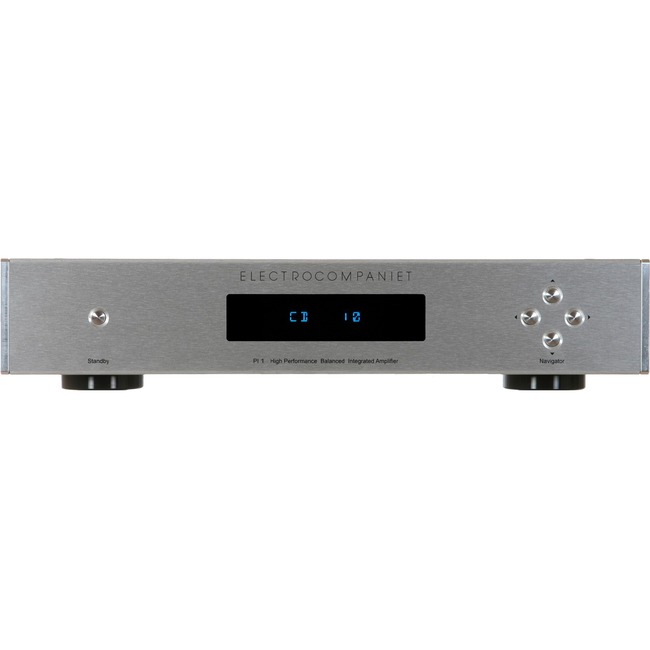

Electrocompaniet PL 1 Integrated Amplifier
Elevate your stereo system with the Electrocompaniet PI-1 — a fully balanced, Norwegian-engineered integrated amplifier that combines precision, musicality, and power in an elegant design. Part of Electrocompaniet’s Prelude line, the PI-1 delivers refined performance and effortless control across a wide range of speakers.
Key Features
-
Powerful Performance – 50 watts per channel into 8 ohms (75 W into 4 ohms), with impressive current delivery for dynamic, detailed sound.
-
Fully Balanced Design – includes two balanced XLR inputs and two single-ended RCA inputs, ensuring low noise and excellent channel separation.
-
High-Quality Linear Power Supply – equipped with a 300 VA toroidal transformer and 40,000 µF of capacitance for exceptional stability and dynamic headroom.
-
Wide Frequency Response – extends from 1 Hz to 200 kHz (–3 dB) to reproduce music with transparency and accuracy.
-
Low Distortion & High Separation – total harmonic distortion plus noise under 0.2%, with channel separation exceeding 120 dB for pure, lifelike sound.
-
High Damping Factor – over 250 (8 ohm load) ensures tight, controlled bass and superb driver control.
-
Comprehensive Protection – features built-in safeguards against overheating, DC offset, and short circuits, with a direct output path free of relays for clean signal integrity.
Specifications
| Specification | Detail |
|---|---|
| Power Output (8 Ω) | 2 × 50 W |
| Power Output (4 Ω) | 2 × 75 W |
| Frequency Response | 1 Hz – 200 kHz (–3 dB) |
| THD + Noise | ≤ 0.2% (20 Hz – 20 kHz) |
| Channel Separation | > 120 dB |
| Inputs | 2 × Balanced (XLR), 2 × Single-ended (RCA) |
| Output Impedance | ~0.03 Ω |
| Damping Factor | > 250 (8 Ω) |
| Dimensions (W × D × H) | 420 × 340 × 70 mm |
| Weight | 12 kg |
Colour: Silver Face
Includes Box & Remote
Condition: Excellent
R6,350.00
All products imported from HFX Systems are subject to the buyer’s responsibility for importing taxes and duties, as well as electrical compliance in the buyer’s respective country. HFX Systems does not assume any responsibility for these matters, and it is the buyer’s sole responsibility to ensure compliance with all relevant regulations.
