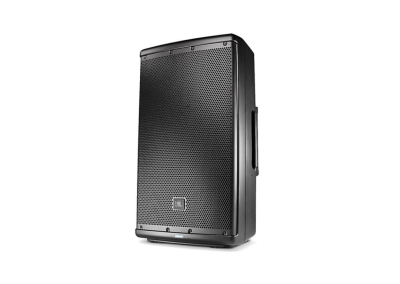

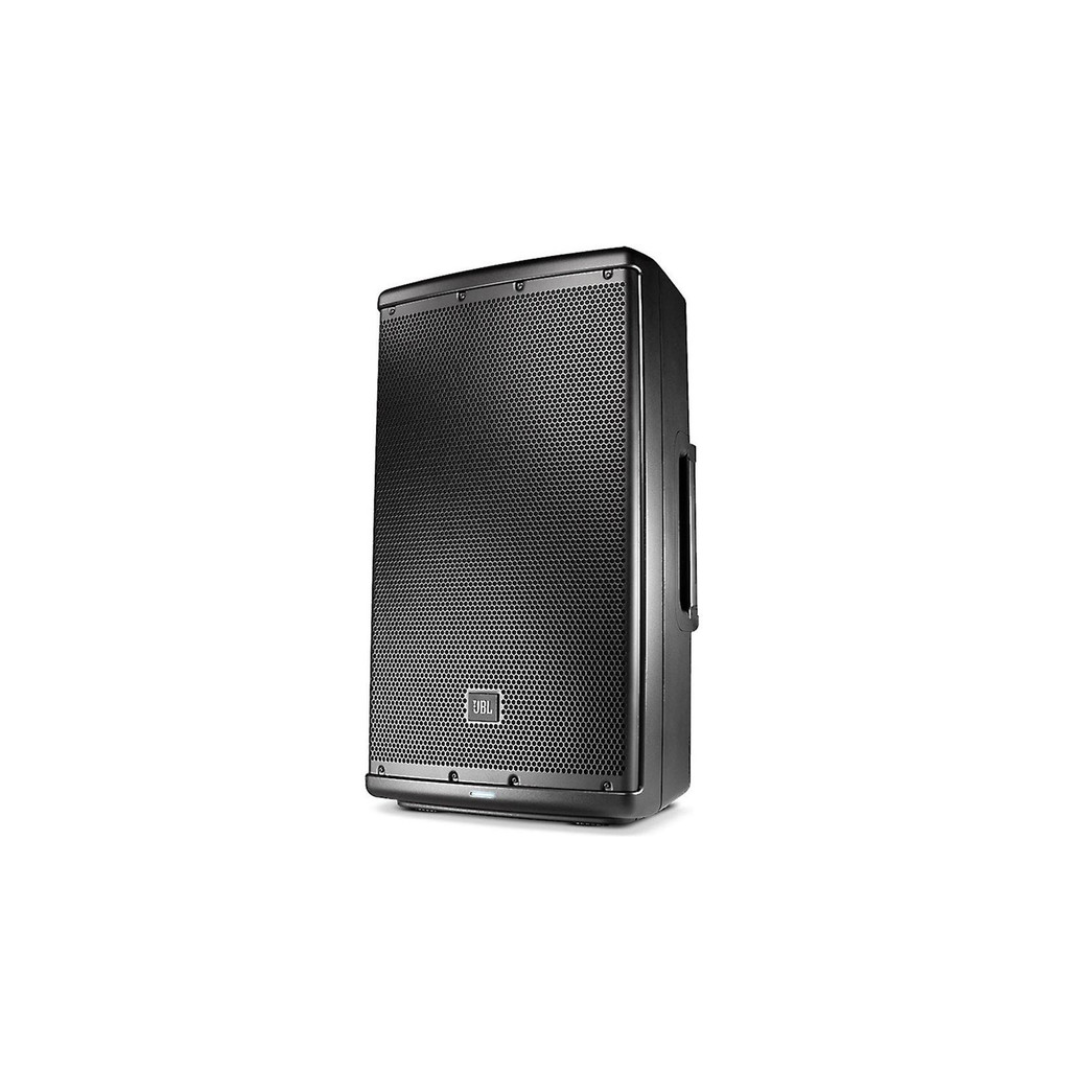

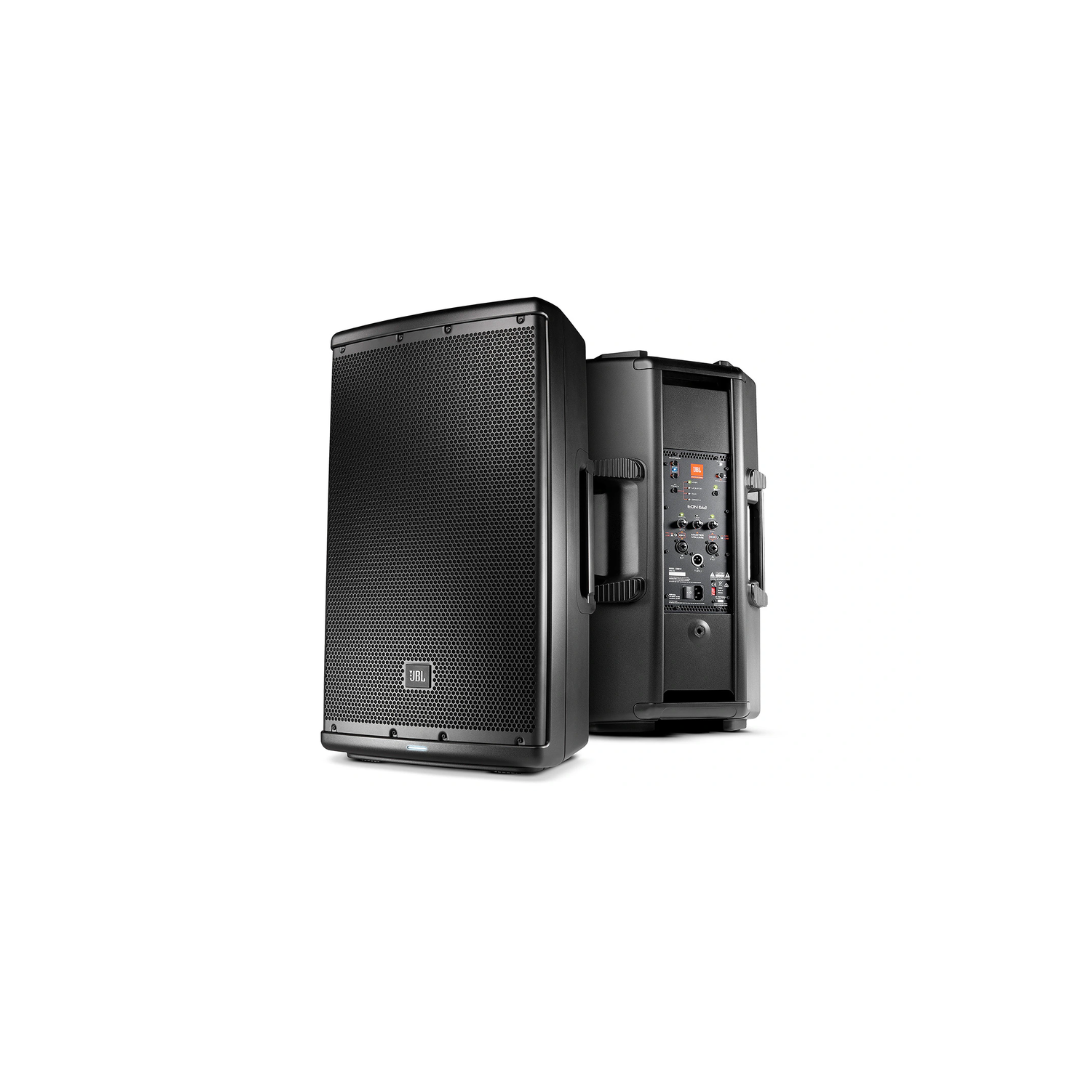

JBL Eon 612 Self Powered Portable PA System

The JBL EON612 is a self-powered 12-inch, two-way bass-reflex loudspeaker designed as a versatile solution for portable sound reinforcement. Part of JBL Professional’s EON600 Series, it combines JBL transducers with efficient Class-D amplification in a lightweight polypropylene enclosure designed for straightforward transport, setup and deployment.

With 1000W of peak amplification and a maximum SPL output of 126dB, the EON612 is designed for a wide range of applications including use as a main PA loudspeaker, stage monitor, rear fill or side fill. Its 12-inch low-frequency driver and 1-inch neodymium compression driver provide a frequency range of 48Hz–20kHz (-10dB), while the integrated DSP platform provides application presets and user-accessible equalisation.

The EON612 also incorporates Bluetooth control, allowing DSP parameters, presets and master volume to be controlled from compatible iOS and Android devices. Its enclosure provides four handles, a 35mm pole socket and three M10 suspension points, giving the speaker considerable flexibility for portable and installed applications.

Key Features

• 12-inch, two-way bass-reflex self-powered system
• 1000W peak / 500W continuous Class-D amplification
• Maximum SPL output of 126dB
• 48Hz–20kHz frequency range (-10dB)
• 57Hz–20kHz frequency response (-3dB)
• JBL 612H 380mm (12-inch) woofer
• JBL 2414H-1 25.4mm (1-inch) polymer-diaphragm neodymium compression driver
• 110° × 60° coverage pattern
• Bluetooth control of DSP parameters, presets and master volume
• Three parametric EQs plus high- and low-shelf EQ
• Main, Monitor, Speech and Subwoofer application presets
• Four integrated handles
• Three M10 suspension points
• 35mm pole socket with stabilising screw
• Lightweight polypropylene enclosure

System & Performance

System Type:
Self-powered 12-inch, two-way, bass-reflex

Maximum SPL Output:
126dB

Frequency Range (-10dB):
48Hz–20kHz

Frequency Response (-3dB):
57Hz–20kHz

Coverage Pattern:
110° × 60°

Crossover Frequency:
1.8kHz

Amplification

Amplifier Design:
Class-D

System Power Rating:
1000W Peak
700W LF + 300W HF

Continuous Power:
500W
350W LF + 150W HF

Cooling:
Passive

Input Impedance:
20kΩ balanced

Driver Complement

LF Driver:
1 × JBL 612H 380mm (12-inch) woofer

HF Driver:
1 × JBL 2414H-1 25.4mm (1-inch) polymer-diaphragm, neodymium compression driver

Crossover Frequency:
1.8kHz

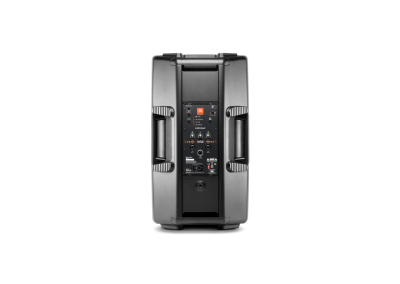

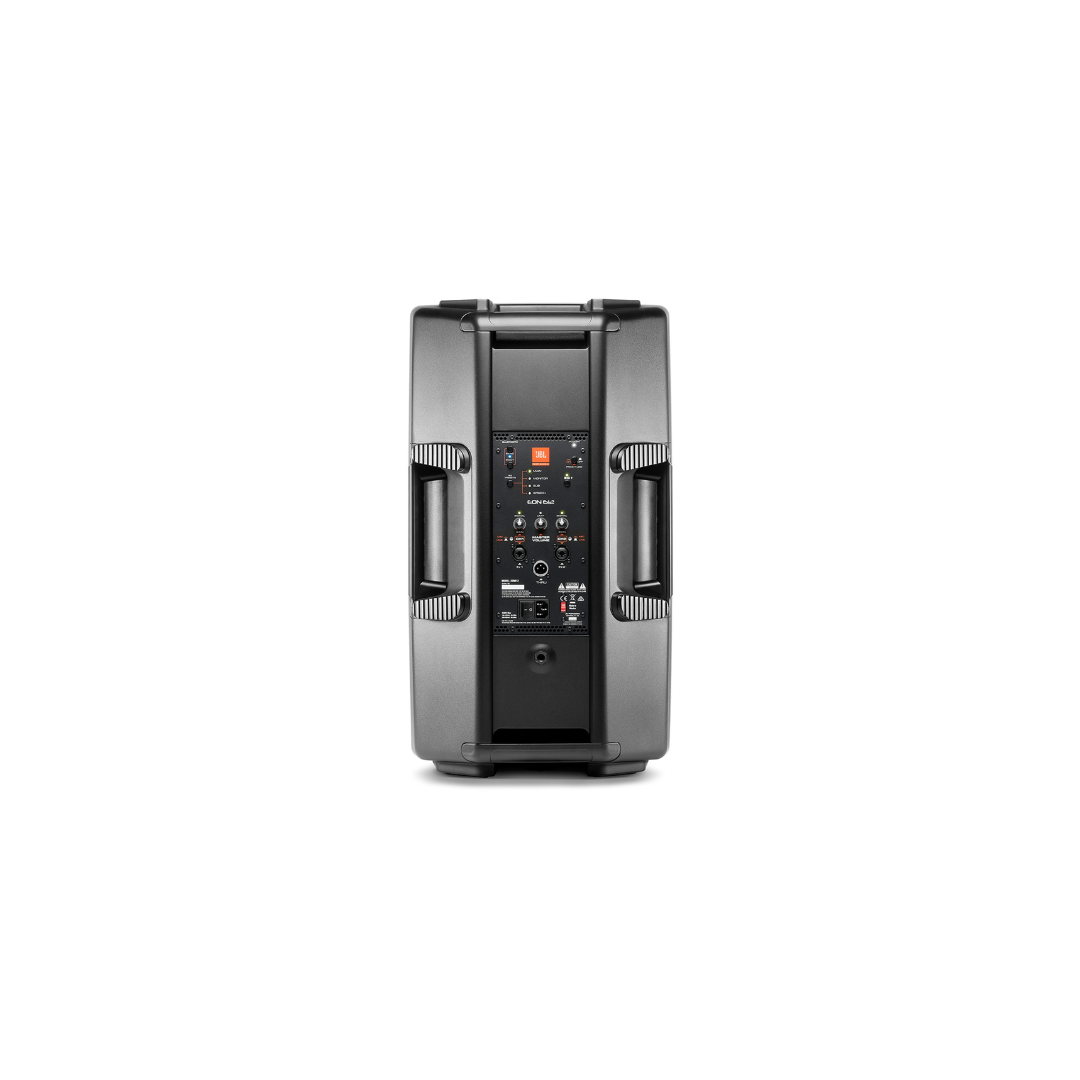

Inputs & Outputs

Inputs:
2 × balanced XLR-1/4-inch combination inputs

Input Types:
Mic / Line

Maximum Input Level:
Line: +14dBu
Mic: -4dBu

Line Input Gain:
Infinity to 26.8dBu

Mic Input Gain:
Infinity to 29dBu

Output:
1 × male XLR loop-through output

Loop-Through:
For routing signal to additional EON600 loudspeakers

DSP & Bluetooth Control

The EON612 incorporates DSP processing with Bluetooth control of the speaker’s DSP parameters, presets and master volume. JBL specifies control of up to four speakers simultaneously using compatible iOS and Android devices.

EQ:
3 × parametric EQs
High-shelf
Low-shelf

Additional DSP Controls:
Gain
Delay
Save and recall settings

Application Presets:
Main
Monitor
Speech
Subwoofer

Enclosure & Mounting

Enclosure Material:
Polypropylene, black

Monitor Angle:
Both sides

Pole Mount:
35mm pole socket with stabilising screw

Suspension:
3 × M10 suspension points

Handles:
4

Grille:
Powder-coated, perforated steel with acoustically transparent black cloth backing

The enclosure incorporates integrated mounting hardware and indexed feet for stacking, stage-monitor positioning and other configurations.

Power Requirements

AC Power Input:
100–120VAC, 50/60Hz
230–240VAC, 50/60Hz

AC Power Consumption at 120V:
1/8 Power – 1.14A maximum
1/4 Power – 1.71A maximum
1/3 Power – 2.03A maximum

Dimensions & Weight

Dimensions (H × W × D):
664 × 380 × 316mm

Dimensions (inches):
26.14 × 14.96 × 12.44in

Weight:
33lbs / 19kg

Shipping Weight:
43lbs / 19kg

Applications

The EON612 is designed for use as a main PA loudspeaker, stage monitor, rear fill or side fill. Its portable enclosure, integrated handles, pole mounting and suspension points allow it to be deployed in a variety of sound-reinforcement configurations.

Conclusion

The JBL EON612 is a versatile powered loudspeaker that combines a substantial 12-inch driver complement with efficient Class-D amplification, integrated DSP and comprehensive mounting options. Its 1000W peak power rating, 126dB maximum SPL and 48Hz–20kHz (-10dB) operating range provide the output and bandwidth required for a broad range of portable sound-reinforcement applications.

Its integrated Bluetooth control and application presets add useful flexibility, while the polypropylene enclosure, four handles, pole socket and M10 suspension points make the EON612 practical for both mobile and more permanent installations.

For applications requiring a capable, self-powered loudspeaker that can operate as a main PA, stage monitor or fill speaker, the JBL EON612 offers a well-equipped combination of JBL professional transducer technology, amplification, DSP control and portable design.

*The information provided above has been taken from the manufacturer’s original product manual and is intended as a reference. Specifications, features, dimensions and other details may vary depending on production version, regional configuration or subsequent manufacturer revisions. Please confirm specific details with HFX Systems prior to purchase.

Condition: Good

Colour: Black

Note: Product does not include original packaging or accessories
