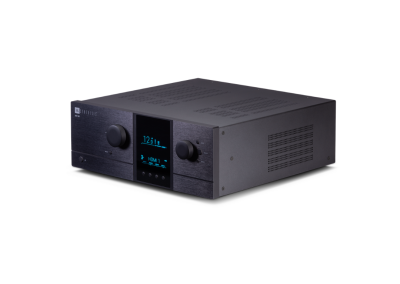

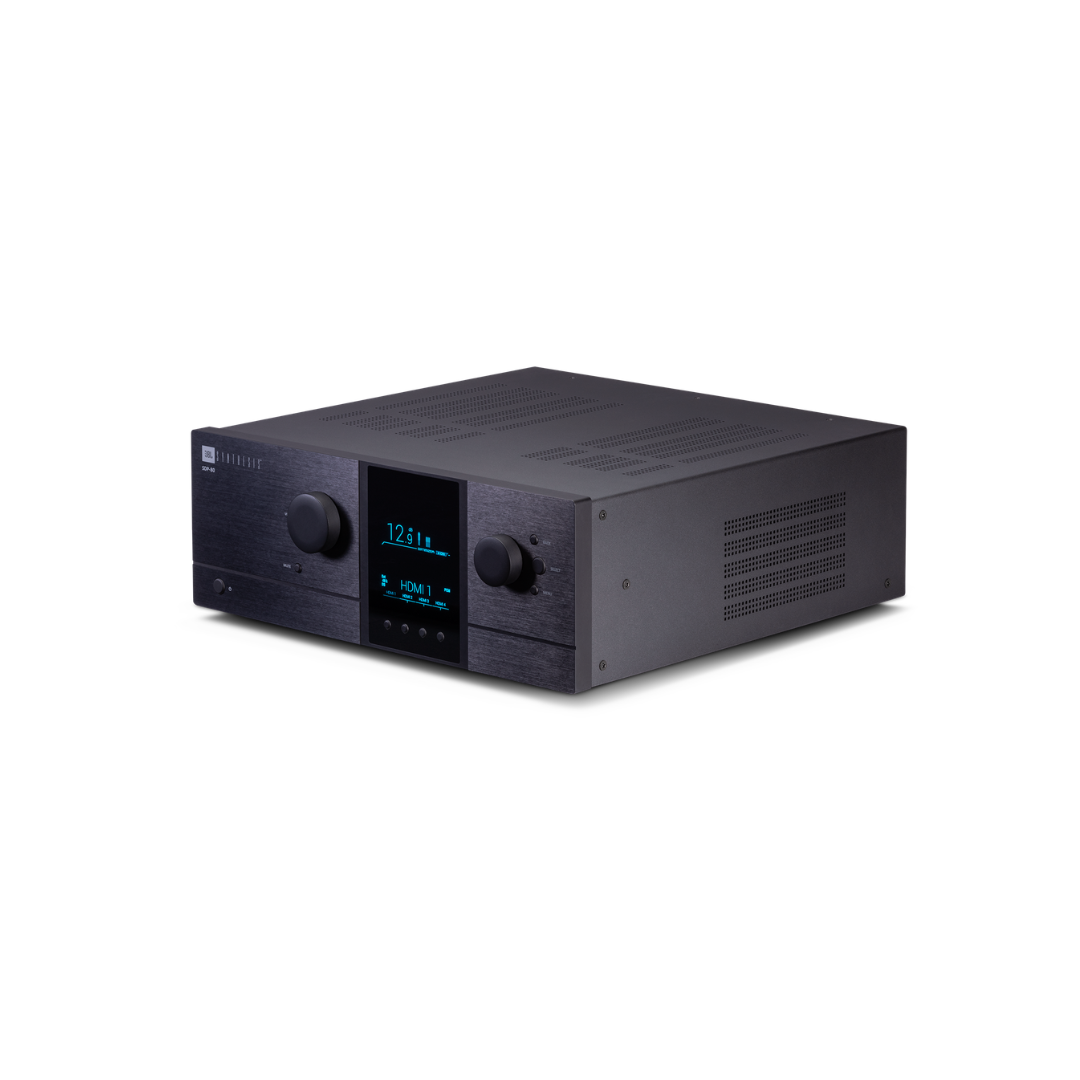

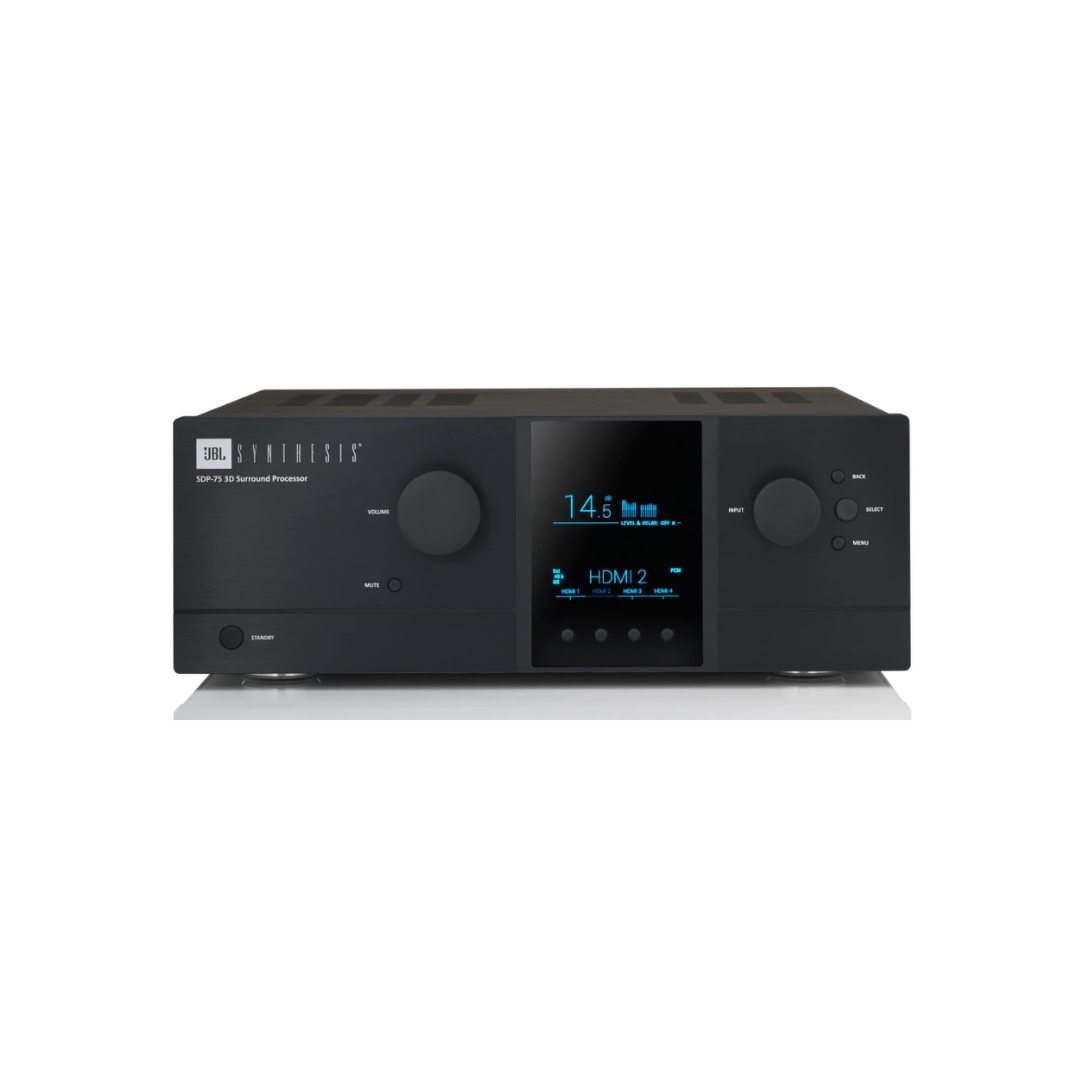

JBL Synthesis SDP-75 3D Surround Processor (16 Channels)

The JBL Synthesis SDP-75 is JBL’s flagship immersive surround processor, positioned at the very top of the Synthesis electronics range. Built on the renowned Trinnov Altitude platform and extensively customised for JBL Synthesis, the SDP-75 is one of the most advanced home cinema processors available, designed for reference-grade multi-channel decoding, room correction, and system optimisation.

The 16-channel version offers full discrete immersive audio decoding for advanced home theatre layouts such as:

• 9.1.6
• 7.4.4
• 7.2.6
• 5.4.6

Its biggest strength lies in the integration of Trinnov Optimizer with JBL Synthesis speaker presets, allowing exceptionally precise phase, timing, bass management, and room correction calibration.

Specifications

Processing Architecture

• 16-channel immersive surround processor
• Intel® i7 PC-based platform
• 64-bit floating-point processing
• 24-bit / 192kHz native audio processing
• Full matrix routing architecture
• Future upgradable software platform

Supported Audio Formats

Immersive Audio

• Dolby Atmos
• DTS:X
• Auro-3D

Legacy / HD Formats

• Dolby TrueHD
• DTS-HD Master Audio
• Dolby Digital Plus
• Dolby Digital
• DTS
• LPCM multichannel

The SDP-75 can decode and optimise virtually all modern home cinema audio formats.

Room Correction & Calibration

• Trinnov Optimizer
• JBL Synthesis loudspeaker preset integration
• Multi-point room calibration
• Speaker remapping
• 3D microphone calibration system
• Phase and timing correction
• Advanced bass management
• Harman target curve integration

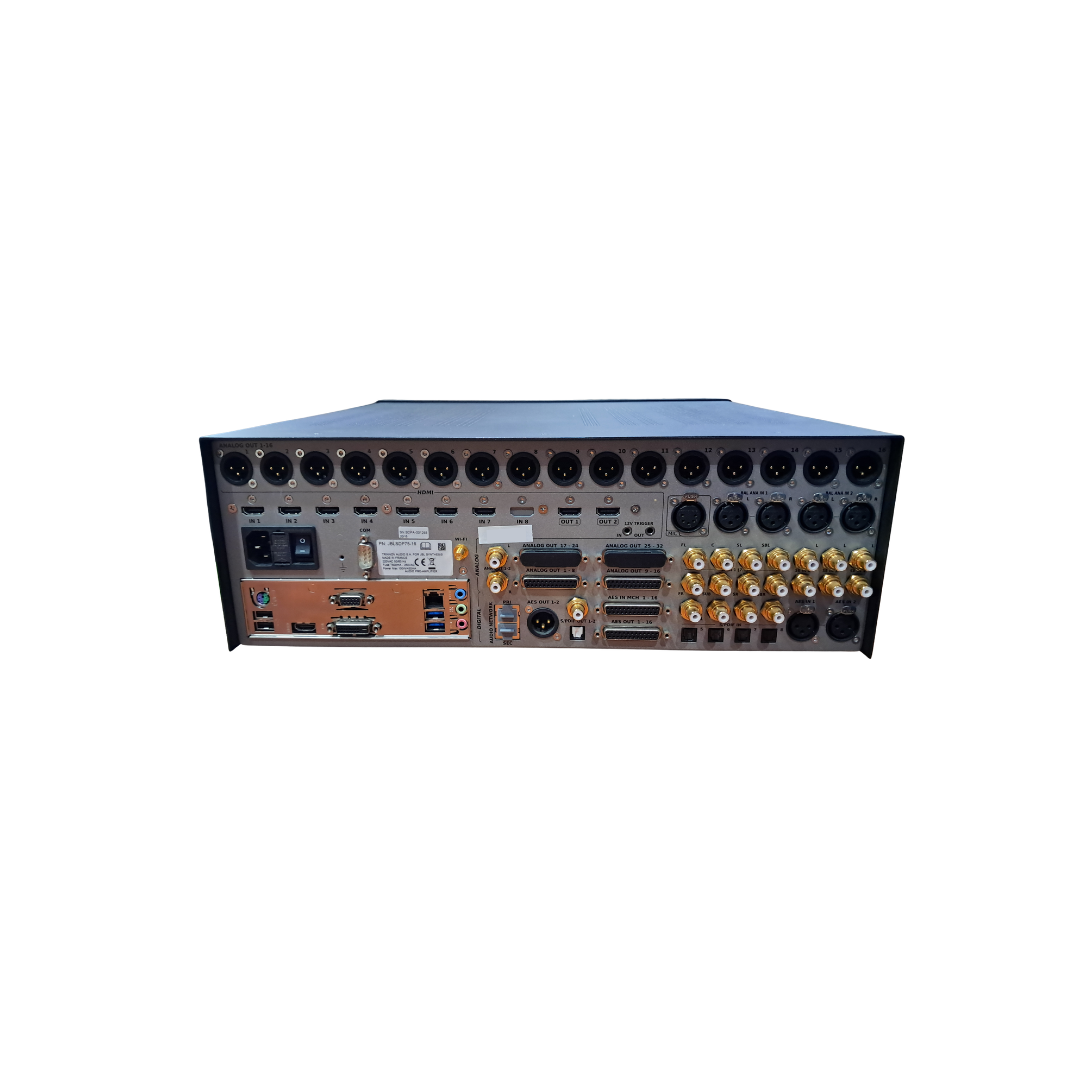

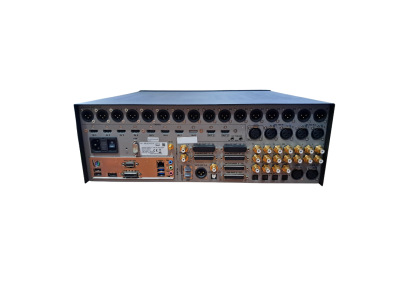

Inputs

HDMI

• 7 × HDMI 2.0b inputs
• 2 × HDMI outputs
• 4K Ultra HD
• HDR compatible
• HDCP compliant

Digital Audio

• 4 × Coaxial S/PDIF
• 4 × Optical Toslink
• 2 × AES/EBU (XLR)
• 1 × AES3 DB25 (8 channels standard, expandable)

Analogue Audio

• 2 × Balanced XLR stereo inputs
• 3 × RCA stereo inputs
• 1 × 7.1 RCA analogue input

Calibration Input

• 1 × 5-pin XLR 3D microphone input

Outputs

Analogue Outputs

• 16 × Balanced XLR outputs

Digital Outputs

• 16 × AES3 (DB25)
• 1 × AES/EBU stereo output
• 1 × Coaxial S/PDIF
• 1 × Optical Toslink

This makes the SDP-75 highly flexible for large dedicated cinema systems using external multi-channel amplification.

Network & Streaming

• Gigabit Ethernet
• Built-in Wi-Fi
• Web-based remote interface
• Remote diagnostics
• UPnP / DLNA renderer
• VNC remote setup
• Software updates over network

Audio Performance

• ADC Resolution: 24-bit / 96kHz
• DAC Resolution: 24-bit / 192kHz
• A/D SNR: 119dB
• D/A SNR: 118dB
• Balanced input impedance: 20kΩ
• Single-ended input impedance: 10kΩ

Physical Specifications

• Dimensions (H × W × D):
  155 × 430 × 405 mm
• Weight:
  14.5 kg
• Power Consumption:
  100W max

The SDP-75 is regarded as one of the finest surround processors in the world because of its:

• unparalleled room correction precision
• exceptional speaker integration
• highly accurate object-based rendering
• precise bass management
• scalable channel architecture
• extremely advanced system configurability

Unlike conventional AV processors, the SDP-75 behaves more like a professional cinema optimisation platform, which is why it remains a benchmark in luxury home theatre.

Community consensus consistently notes that it performs in the same elite category as the Trinnov Altitude16 and Trinnov Altitude32 — because at its core, it shares much of that DNA.

A flagship 16-channel immersive cinema processor combining Trinnov optimisation, JBL Synthesis integration, and world-class object-based surround decoding for uncompromising home theatre performance.

Condition: Good

Colour: Black

Note: Product does not include original packaging. Remote control is included
