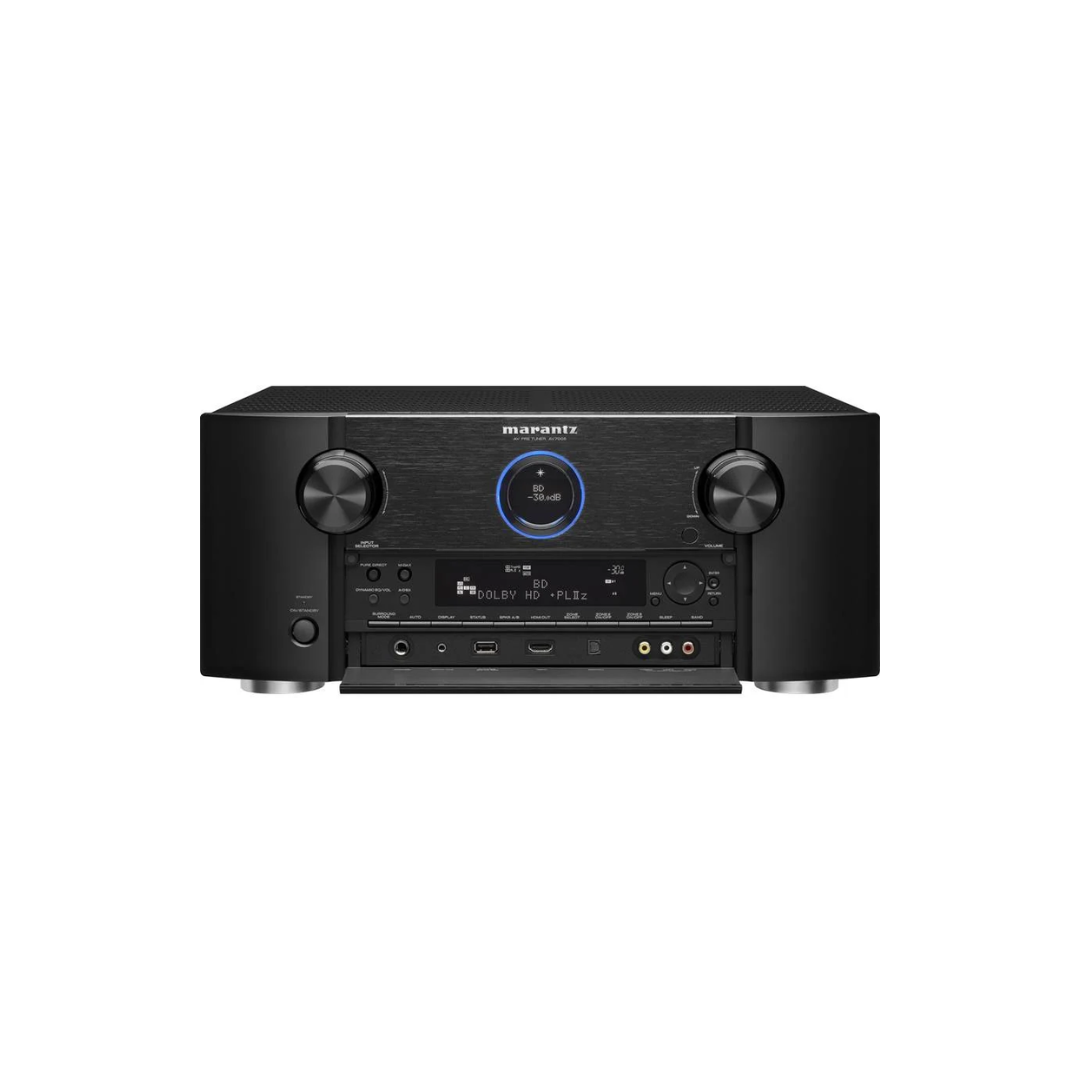

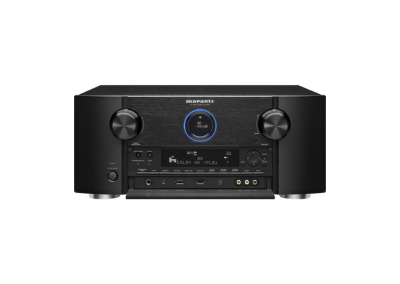

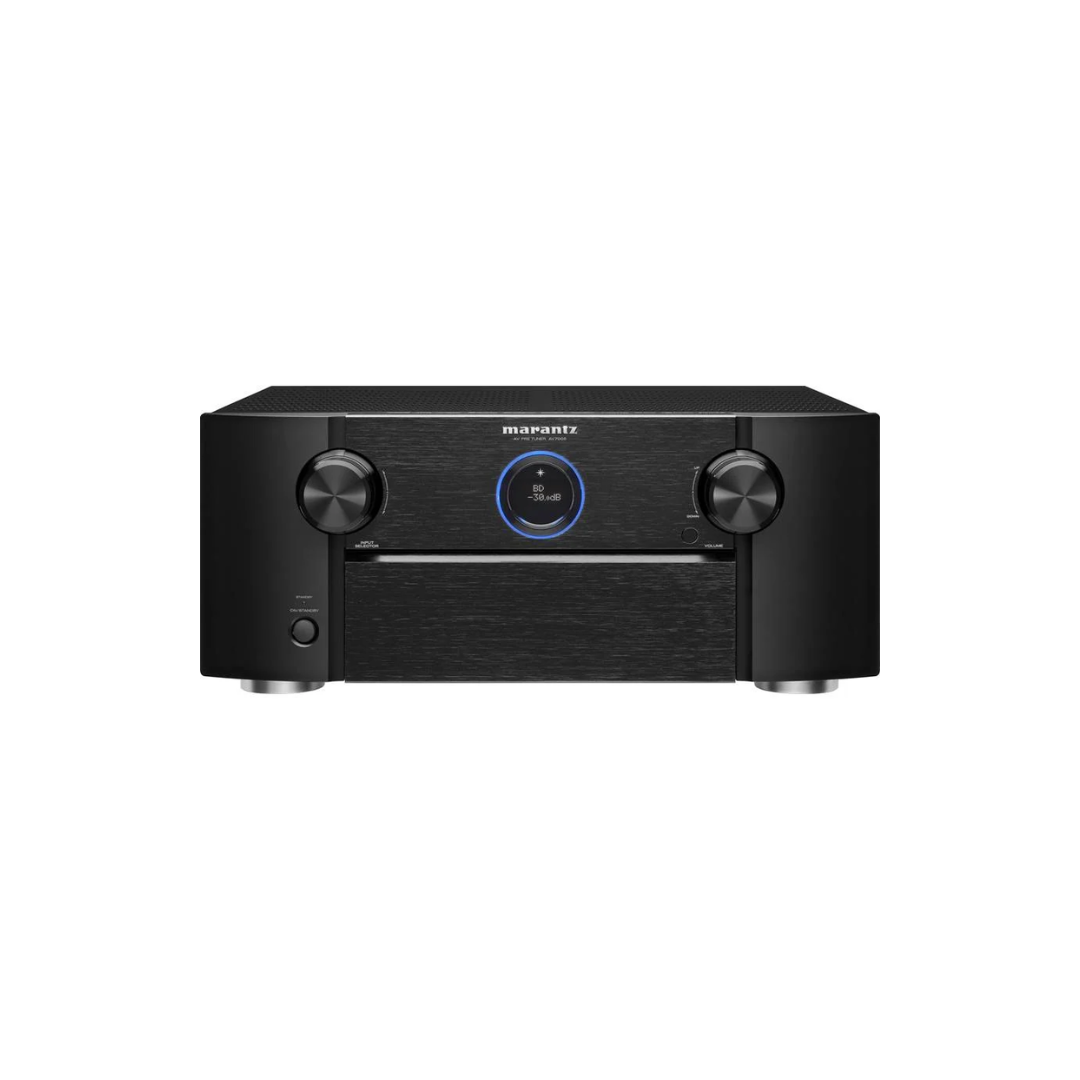

Marantz AV7005 Home theater Preamp/Processor

The Marantz AV7005 is a premium 7.2-channel A/V preamplifier/processor designed for serious home theatre systems built around separate power amplification. By removing internal amplifier stages, the AV7005 focuses entirely on signal processing, DAC performance, and analogue output quality, allowing greater flexibility and improved performance when paired with external amplifiers.

Built around Marantz’s proprietary HDAM (Hyper Dynamic Amplifier Module) analogue stages and Current Feedback circuitry, the AV7005 delivers a notably refined and musical presentation compared to many processors of its generation. It was one of Marantz’s most respected home cinema processors during the HDMI 1.4 era.

Specifications

Processing & Decoding

• Type: 7.2-channel AV preamp/processor
• DACs: 24-bit / 192kHz Burr-Brown DACs
• DSP: 32-bit SHARC processor

Supported Formats

• Dolby TrueHD
• Dolby Digital Plus
• DTS-HD Master Audio
• DTS-HD High Resolution
• Dolby Pro Logic IIz
• Audyssey DSX
• DTS Neo:6

Audio Technologies

• Marantz HDAM analogue stages
• Current Feedback topology
• Audyssey MultEQ XT
• Audyssey Dynamic EQ
• Audyssey Dynamic Volume
• Pure Direct mode
• M-DAX2 compressed audio restoration

Inputs & Outputs

HDMI

• 6 × HDMI inputs
• 2 × HDMI outputs
• HDMI v1.4a
• 3D video compatible
• ARC (Audio Return Channel)
• HDMI standby pass-through
• HDMI-CEC

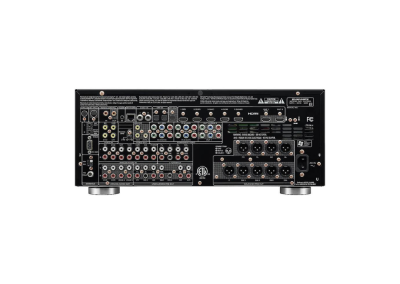

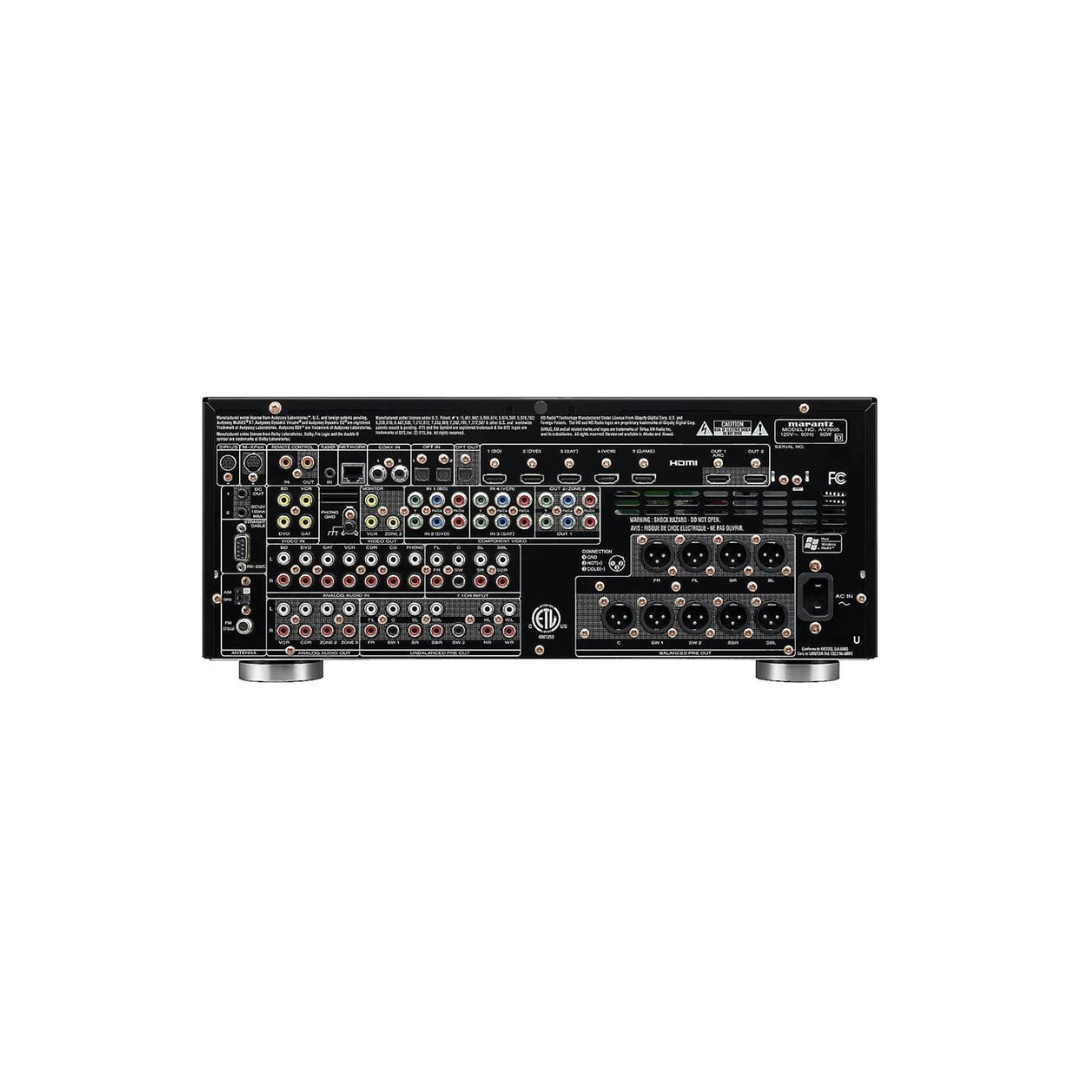

Balanced Outputs

• 7.2-channel XLR pre-outs

RCA Outputs

• 7.2-channel RCA pre-outs

Digital Inputs

• 3 × Optical
• 2 × Coaxial

Digital Outputs

• 1 × Optical

Analogue Inputs

• 7.1-channel analogue input
• MM phono input
• Multiple stereo RCA inputs

Network & Media

• Ethernet (DLNA / Internet radio)
• Front USB input

Zone Outputs

• Zone 2 audio/video
• Zone 3 audio

Control

• RS-232C
• DC trigger out
• Flasher input

Video Processing

• Anchor Bay ABT2015 video processor
• Video upscaling to 1080p
• HDMI video transcoding
• Component-to-HDMI conversion
• Composite-to-HDMI conversion
• GUI over HDMI

Physical Specifications

• Dimensions (W × H × D):
  • 440 × 187 × 395 mm
• Weight:
  • 10.1 kg
• Power Consumption:
  • 60W
  • 0.2W standby

The AV7005 remains respected because it delivers much of the sonic sophistication of Marantz’s premium AV receivers but with the advantages of a dedicated processor. Its balanced outputs make it especially attractive for pairing with higher-end multi-channel amplifiers, and its analogue stage still holds up remarkably well for music.

Its main limitation today is video: HDMI 1.4 means 1080p and 3D only, with no 4K, HDR, Dolby Atmos, or DTS:X. Many current owners use it as an audio-first processor while routing video directly to the display. Community feedback still consistently praises its musicality and build quality.

A serious separates-based AV processor offering excellent analogue performance, balanced connectivity, and classic Marantz musicality for high-quality legacy home cinema systems.

Condition: Good

Colour: Black

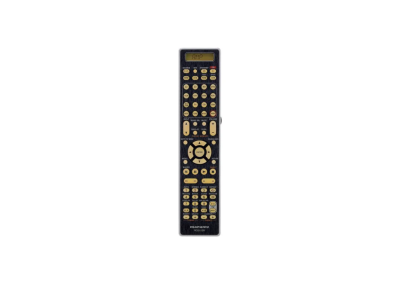

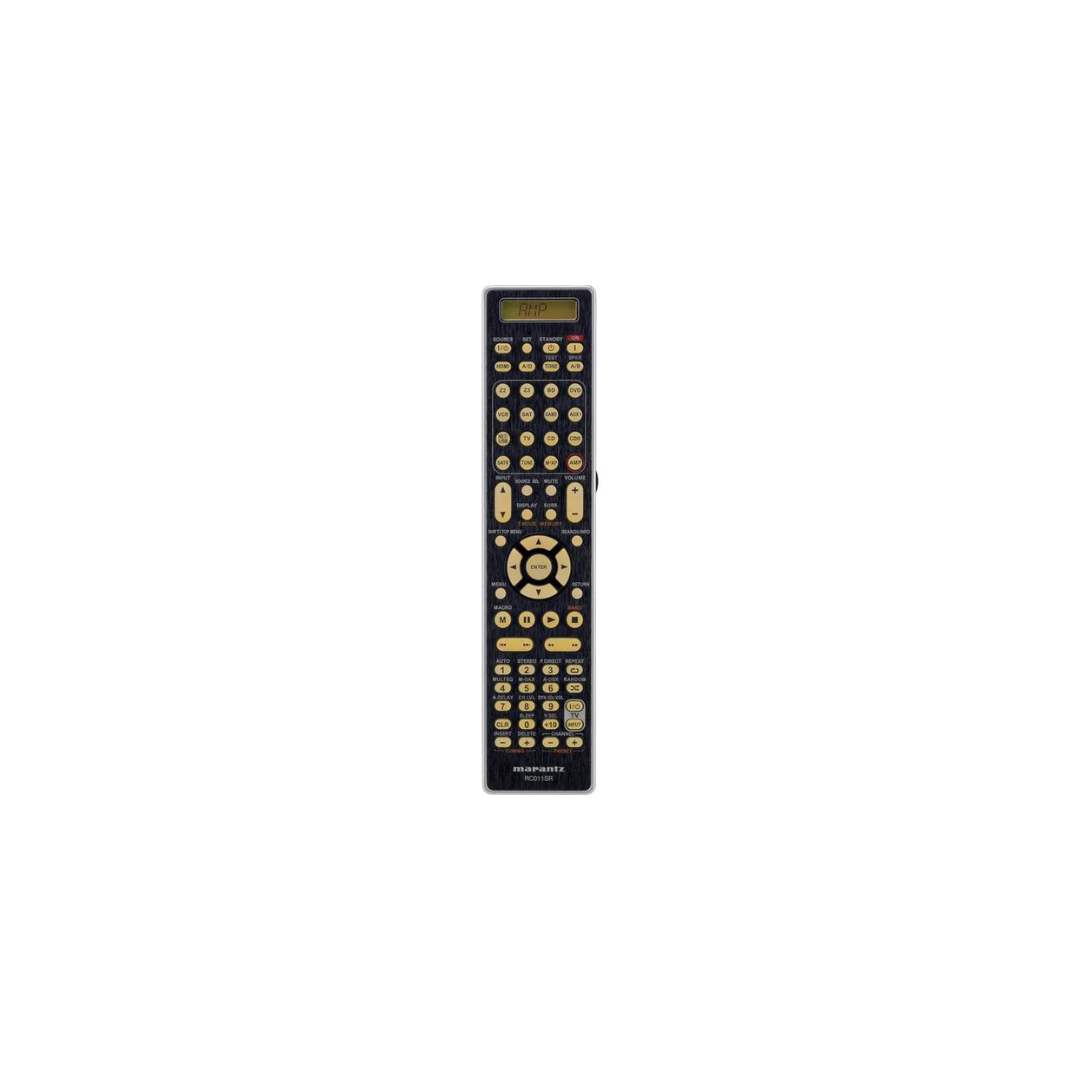

NOTE: This product does not include the original packaging or accessories. Includes Remote RC011SR
