Marantz PM-17 Integrated Amplifier

The Marantz PM-17 is a classic late-1990s integrated amplifier that helped re-establish Marantz as a serious high-end contender during the brand’s return to premium two-channel design. Built around HDAM (Hyper Dynamic Amplifier Module) technology and Current Feedback amplification, the PM-17 was engineered to deliver warm musicality, strong dynamic control, and refined analogue performance. It remains highly respected among vintage audiophiles for its tonal richness and solid build quality.

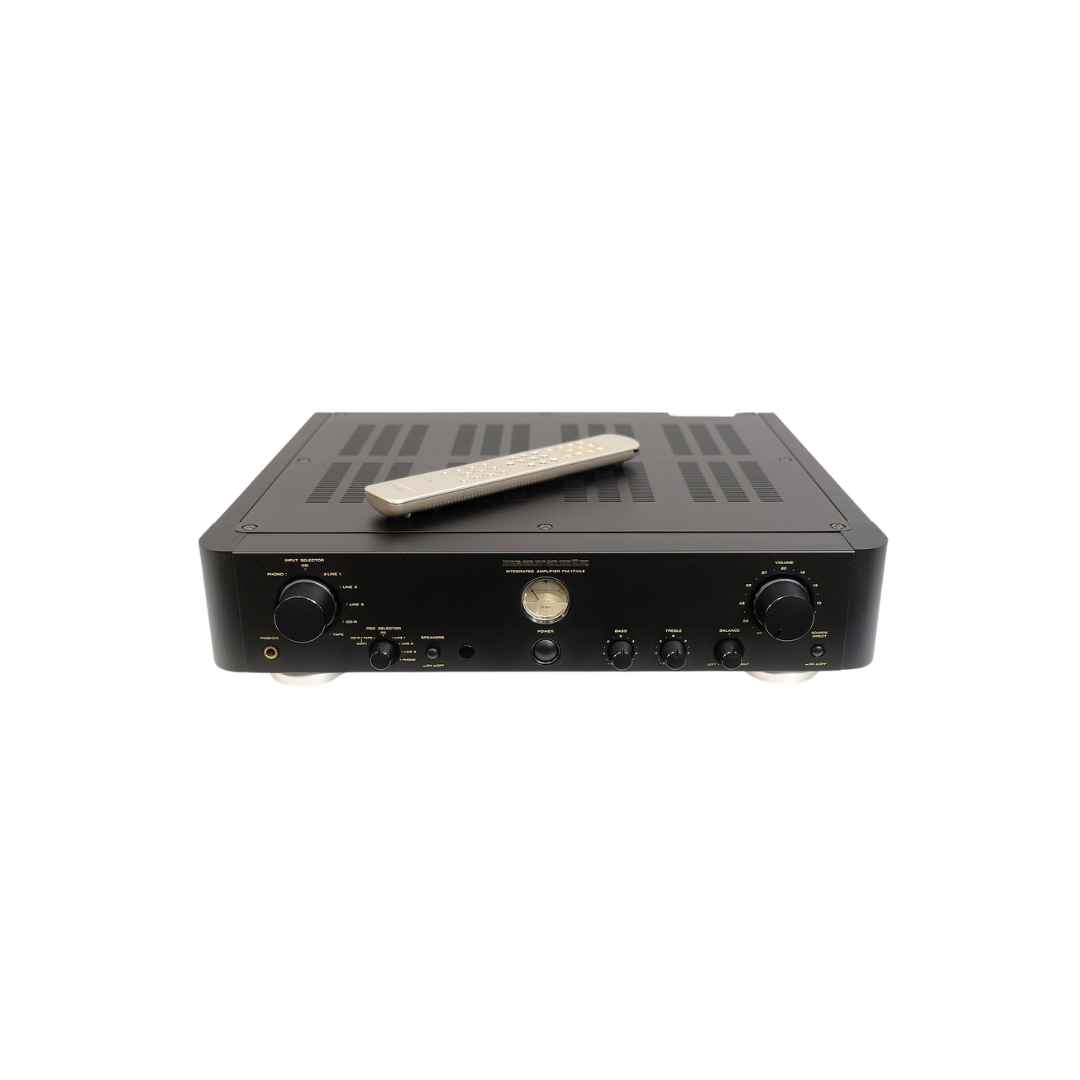

A distinctive feature of the PM-17 is its front-panel thermal warm-up meter, which visually indicates when the amplifier has reached optimal operating temperature — a unique touch reflecting Marantz’s emphasis on thermal stability and sonic consistency. This feature became something of a signature among enthusiasts of the PM-17 series.

Its fully analogue signal path, combined with a high-quality built-in phono stage supporting both MM and MC cartridges, makes it especially attractive for vinyl-focused systems.

Specifications

Amplification

• Type: Stereo integrated amplifier
• Amplifier Topology: Current Feedback
• Power Output:
  • 60W per channel into 8Ω
  • 80W per channel into 6Ω
  • 100W per channel into 4Ω

Performance

• Frequency Response (CD Source Direct):
  • 5Hz – 60kHz (+0dB / -1dB)
• Total Harmonic Distortion:
  • 0.01%
• Damping Factor:
  • 100
• Signal-to-Noise Ratio:
  • MC: 76dB
  • MM: 90dB
  • Line: 110dB

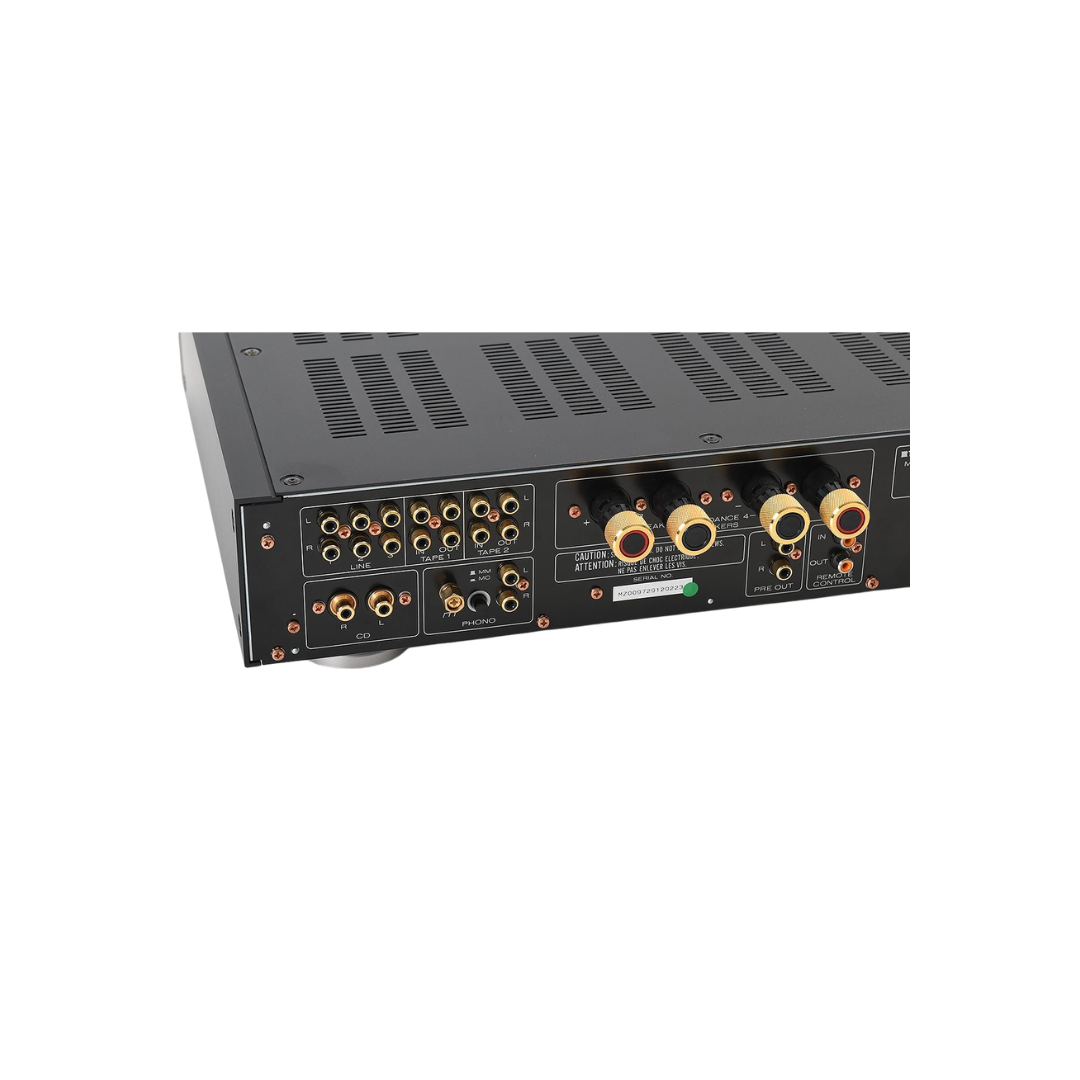

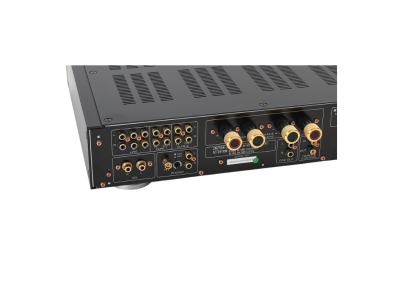

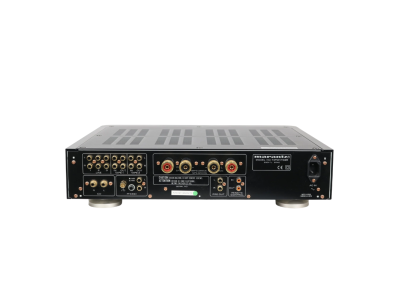

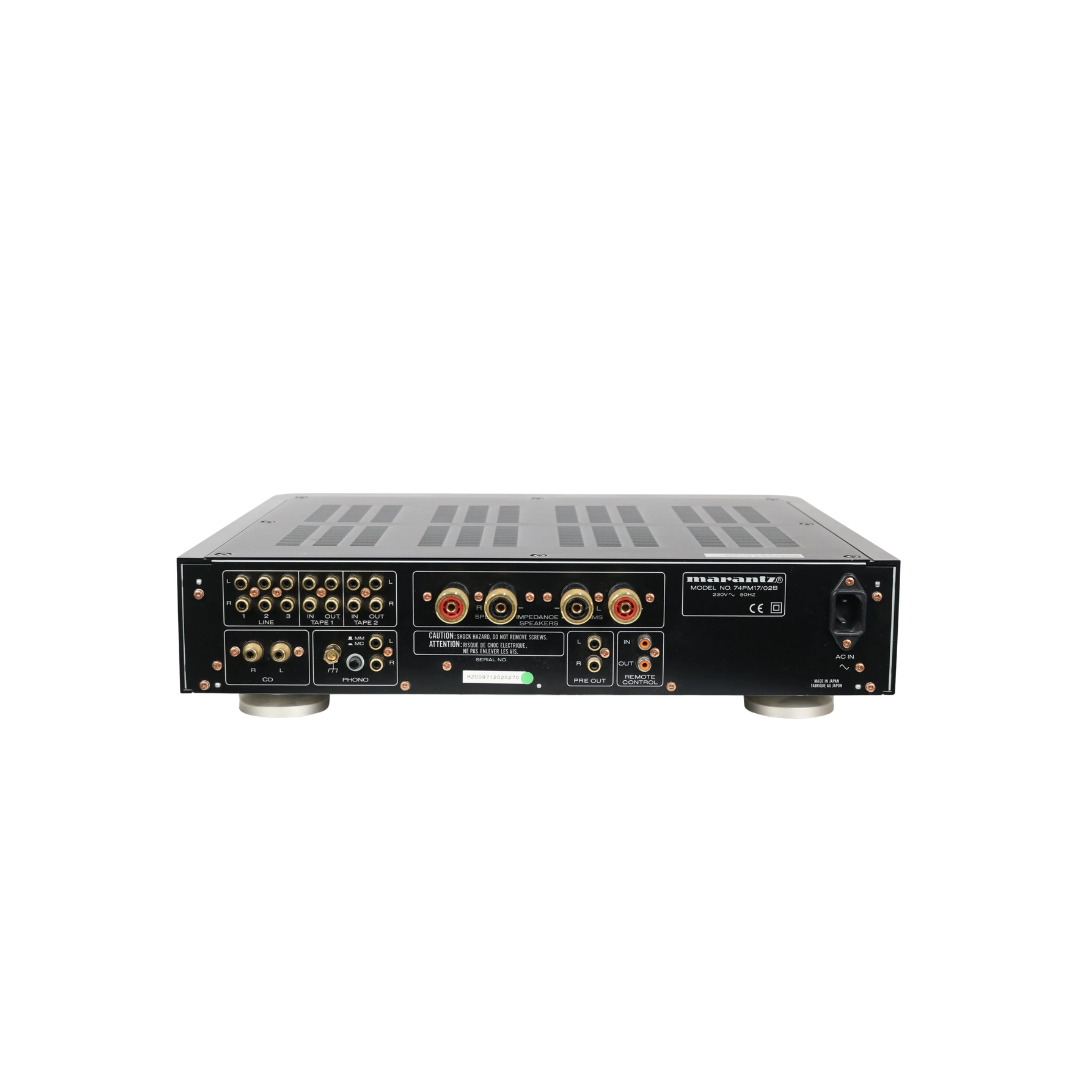

Inputs & Outputs

Analogue Inputs

• 1 × Phono input (MM/MC switchable)
• 1 × CD input
• 3 × Line-level inputs
• 2 × Tape input/output loops

Outputs

• 1 × Pre-out
• 1 × Speaker output set
• 1 × Headphone output

Control

• System remote input
• Wireless remote included

Internal Engineering Highlights

• Adjustable HDAM modules
• Four-gang active volume control
• Current Feedback power amplifier stage
• Super Ring Core toroidal transformer
• Active filter NFB tone control circuit
• Source Direct mode for bypassing tone controls

Physical Specifications

• Dimensions (W × H × D):
  458 × 110 × 444 mm
• Weight:
  15 kg
• Power Consumption:
  180W
• Finish Options:
  Black / Gold

In practical listening, the PM-17 is often praised for its:

• rich, full-bodied midrange
• smooth treble presentation
• strong analogue warmth
• excellent phono stage performance
• surprising current delivery for its rated power

Many long-term owners and enthusiasts still regard it as one of Marantz’s most musically satisfying integrated amplifiers from the era, particularly for vinyl and acoustic music systems. Community feedback continues to highlight its reliability and engaging tonal character decades later.

A beautifully voiced vintage integrated amplifier combining classic Marantz warmth, excellent phono versatility, and refined analogue engineering for timeless two-channel listening.

Condition: Good

Colour: Black

Unit includes original packaging, remote and accessories
