Mola Mola Perca Stereo Amplifier
The Mola Mola Perca is a high-performance stereo power amplifier combining ultra-low distortion Class A input stages with Mola Mola’s proprietary Trajectum Class D amplification platform. Developed from the NCORE® technology of Hypex Electronics, Trajectum refines the self-oscillating Class D principle and feedback concept used by Mola Mola.

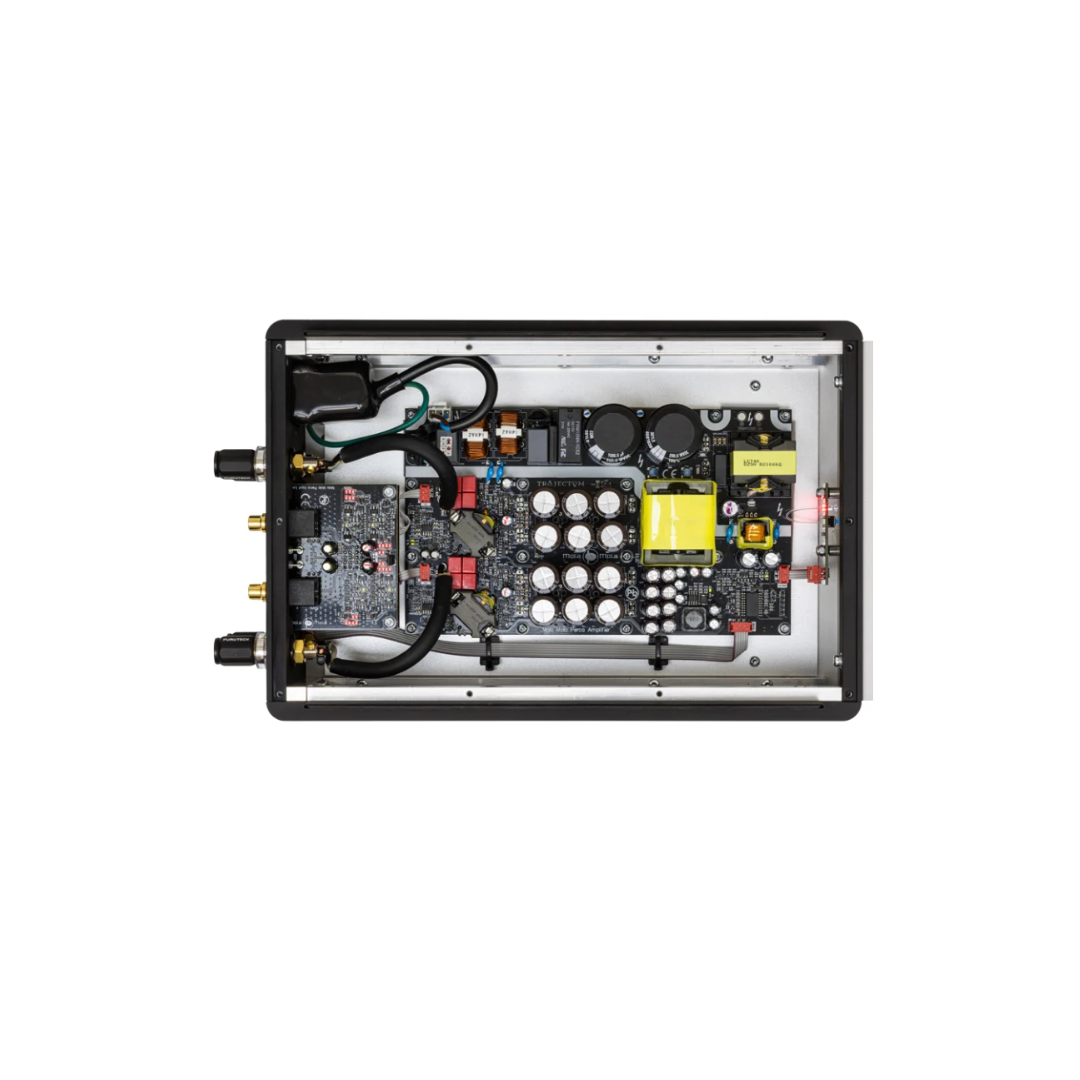

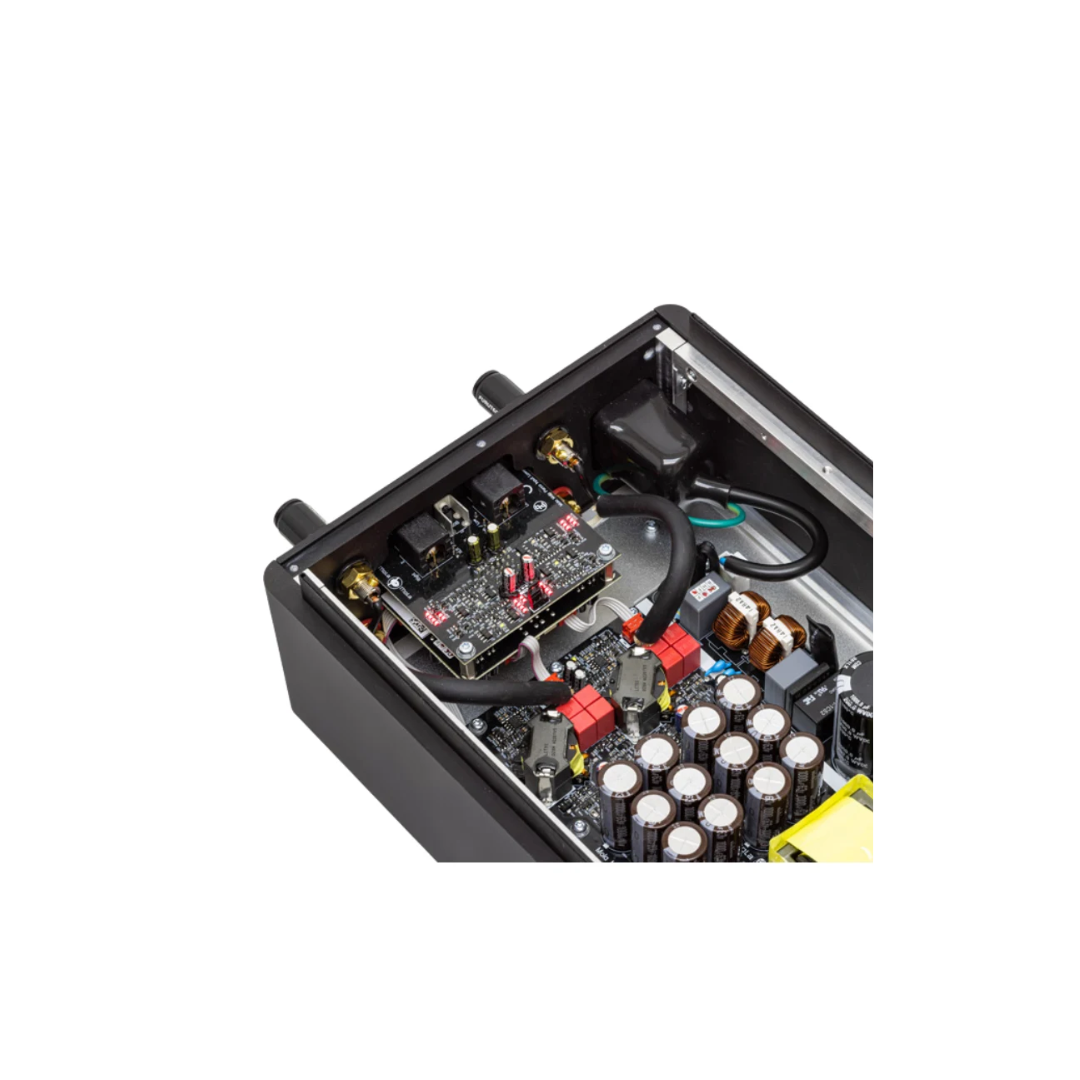

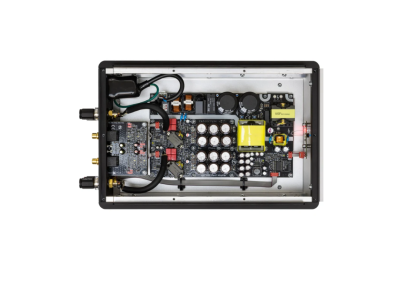

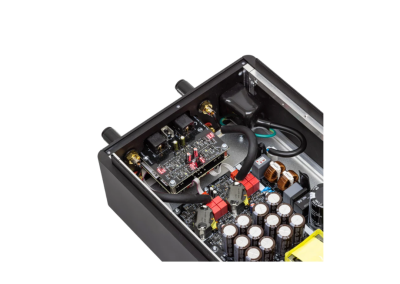

The Perca’s ultra-low distortion Class A input stages are implemented on a separate circuit board with dedicated high-performance voltage regulation. This architecture is designed to provide a clean, stable signal path ahead of the Class D output stage.

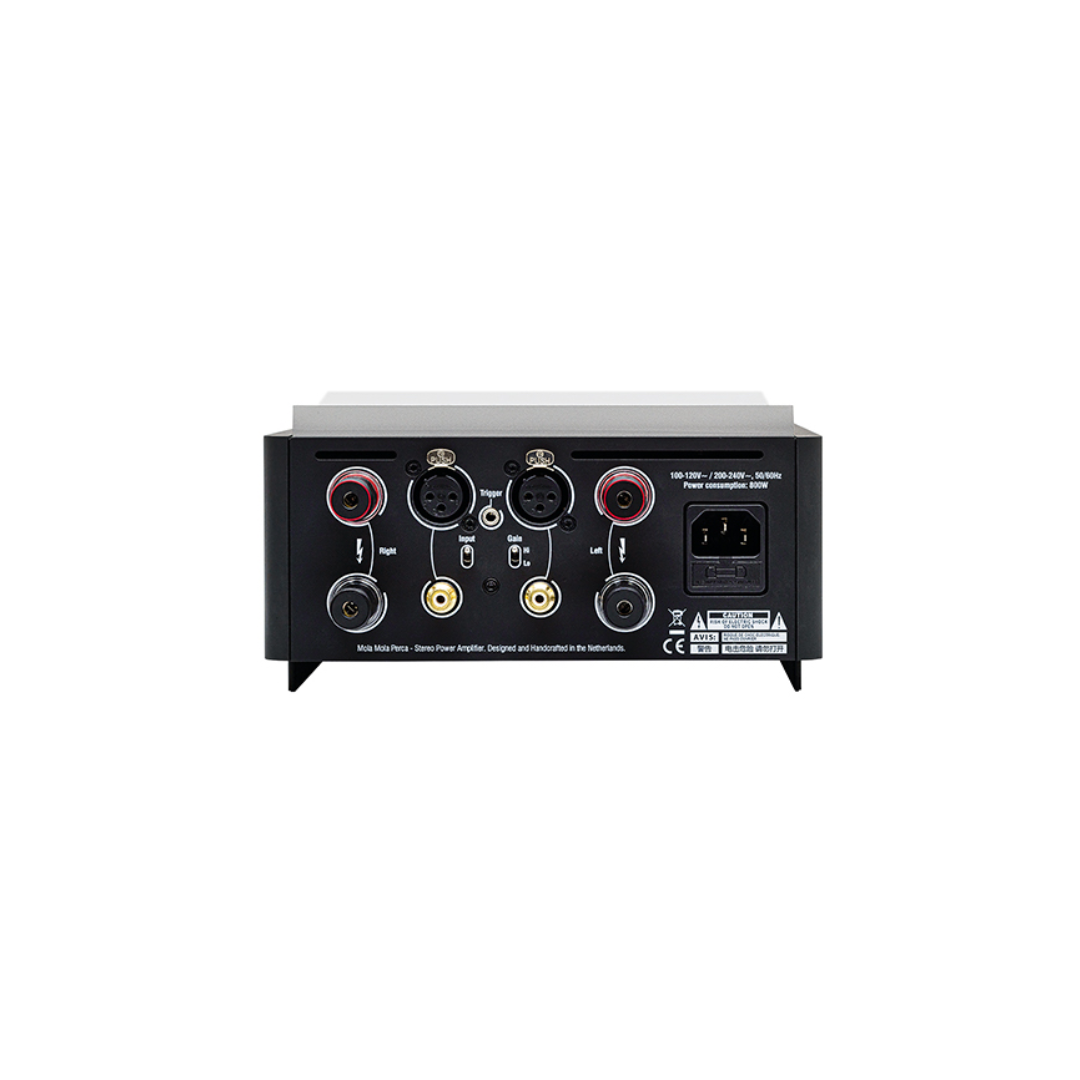

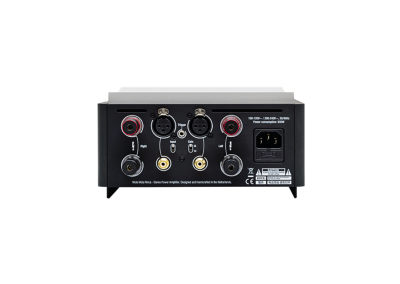

For greater system flexibility, the Perca incorporates selectable amplifier gain of 22 dB or 28 dB, allowing its gain structure to be matched more closely to different preamplifiers and system configurations. It also provides selectable balanced and single-ended inputs, Furutech binding posts and a trigger connection for remote system control.
Key Features
- Stereo Class D power amplifier
- Proprietary Mola Mola Trajectum amplification platform
- Ultra-low distortion Class A input stages
- Dedicated voltage regulation for the input stages
- Selectable 22 dB / 28 dB gain
- Selectable balanced and single-ended inputs
- Furutech speaker binding posts
- On/off trigger connector
- 150W per channel into 8Ω
- 300W per channel into 4Ω
- 2 mΩ output impedance
- Damping factor greater than 4000
Specifications
| Specification | Detail |
|---|---|
| Amplifier Type | Stereo Class D power amplifier |
| Amplification Platform | Mola Mola Trajectum |
| Power Output | 2 × 150 W into 8Ω |
| Power Output | 2 × 300 W into 4Ω |
| Gain | Selectable: 22 dB / 28 dB |
| Signal-to-Noise Ratio | 128 dB |
| THD + IMD | < 0.0003% |
| Input Impedance | 100 kΩ |
| Output Impedance | 2 mΩ |
| Damping Factor | > 4000 |
| Frequency Range | Up to 100 kHz |
| Input Connections | Selectable balanced and single-ended |
| Speaker Connections | Furutech binding posts |
| Trigger Connection | On/off trigger connector |
| Input Stage | Ultra-low distortion Class A |
| Input Stage Regulation | Dedicated high-performance voltage regulation |
Conclusion
The Mola Mola Perca combines a proprietary Trajectum Class D output stage with ultra-low distortion Class A input circuitry to deliver high power, extremely low distortion and exceptional output impedance. Its selectable gain, balanced and single-ended connectivity, and very high damping factor make it a versatile power amplifier for high-performance stereo systems.
