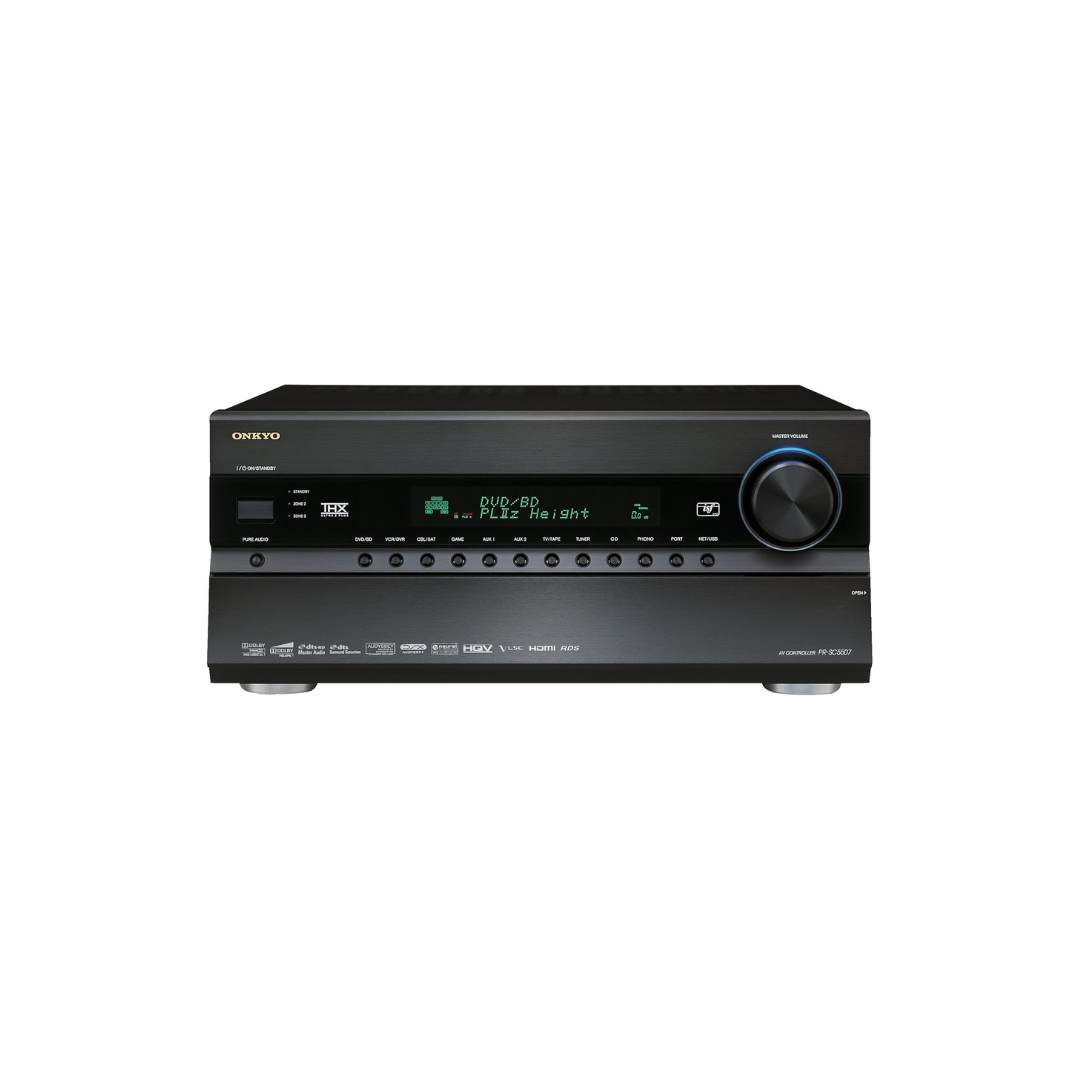

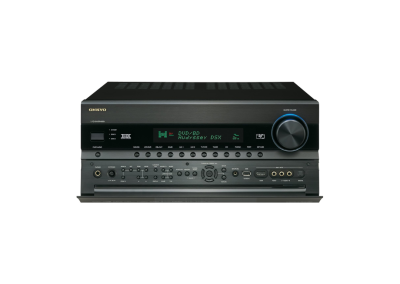

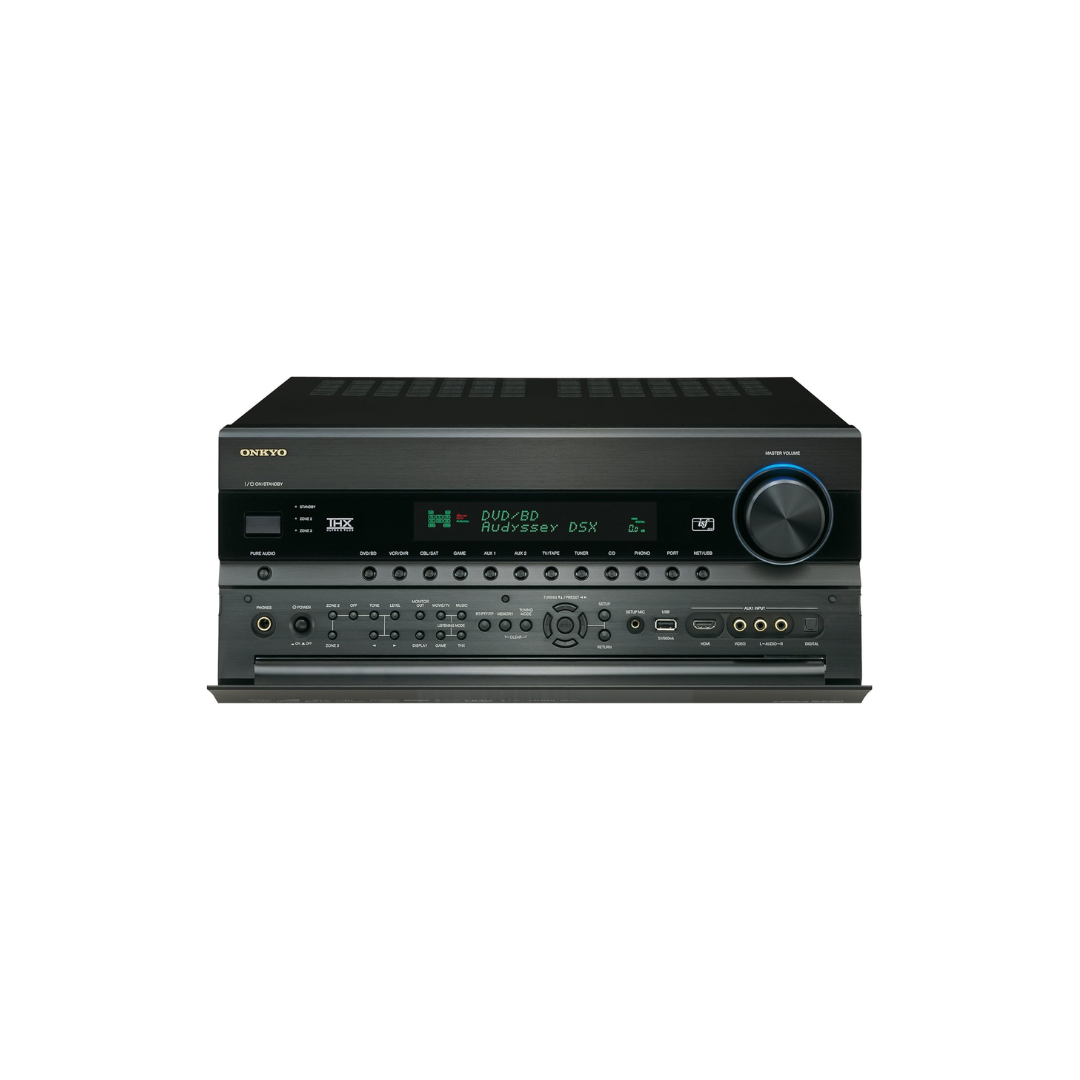

Onkyo PR-SC5507 9.2 Channel AV Network Controller

The Onkyo PR-SC5507 is a dedicated A/V preamplifier/processor (pre-pro)—a component designed to handle decoding, switching, and processing, while relying on external power amplifiers for speaker drive. Positioned as a high-end control centre in its era, it was built to deliver reference-level home theatre performance, particularly in large, multi-channel installations.

Unlike conventional AV receivers, the PR-SC5507 omits internal amplification entirely, allowing for greater flexibility, reduced internal noise, and superior scalability when paired with quality external amplification. Its THX Ultra2 Plus certification further underlines its intent—engineered to meet demanding standards for large-room cinematic playback.

At its core, the unit supports 9.2-channel processing, with extensive balanced and single-ended outputs, enabling complex system configurations including front height and width channels. It integrates advanced processing technologies of its time, including Audyssey MultEQ XT, and a comprehensive suite of Dolby and DTS formats.

Specifications

Core Architecture

• Type: 9.2-channel A/V preamplifier / processor
• Amplification: None (requires external power amplifiers)
• THX Certification: THX Ultra2 Plus

Audio Performance

• Frequency Response: 5Hz – 100kHz (+1 dB / -3 dB, Direct Mode)
• Signal-to-Noise Ratio:
  • 110 dB (Line, IHF-A)
  • 80 dB (Phono, IHF-A)
• Total Harmonic Distortion: approx. 0.05%

Inputs

• HDMI: 7 rear + 1 front
• Digital Audio:
  • 3 × optical (rear) + 1 front
  • 3 × coaxial
• Analogue Audio: Multiple RCA inputs including phono (MM)
• Balanced Inputs: 2 × XLR
• Multichannel Input: 7.1-channel analogue

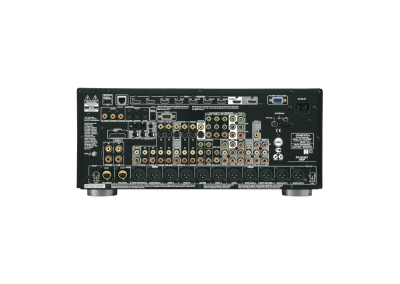

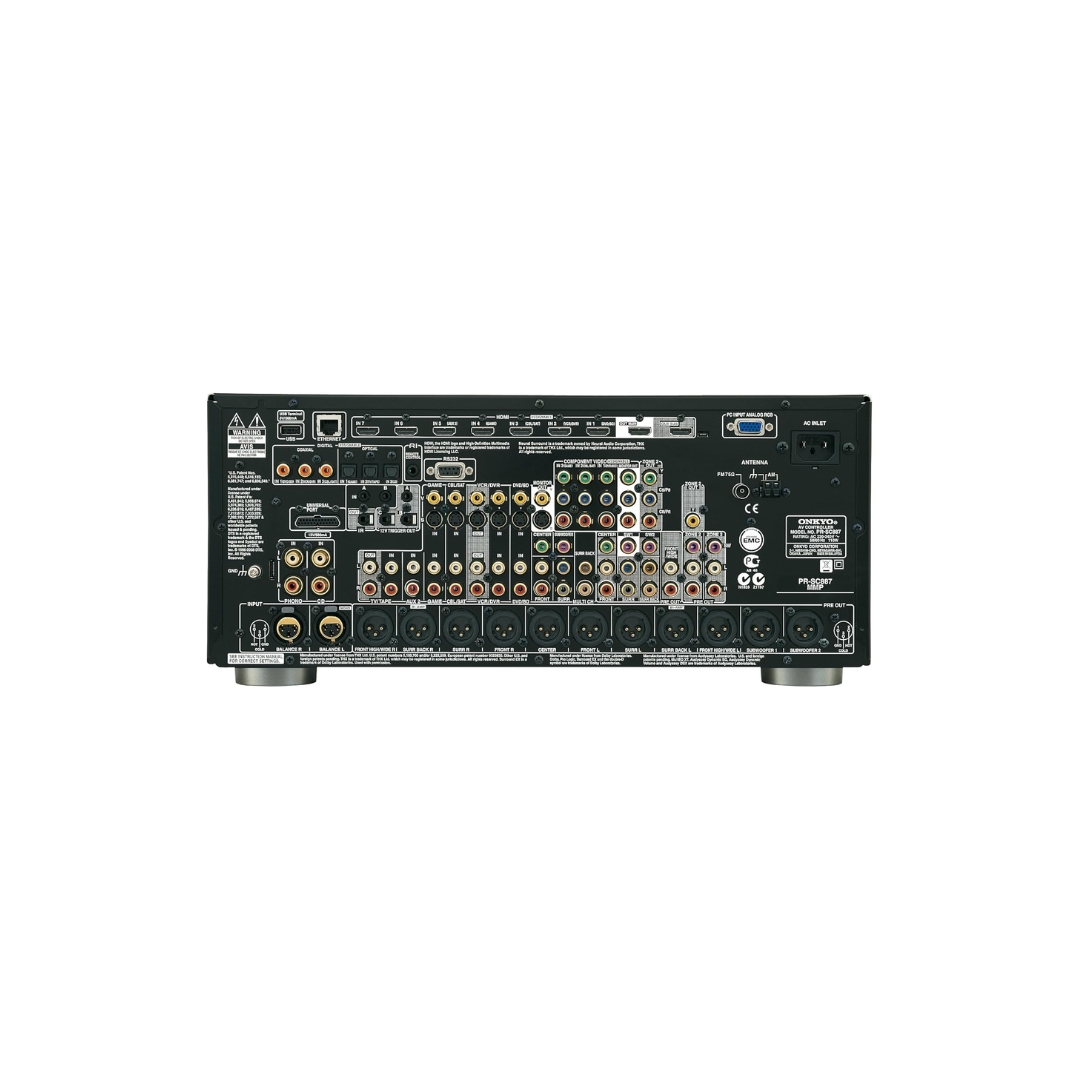

Outputs

• HDMI Outputs: 2 (Main + Sub)
• Pre-outs (Balanced XLR):
  • Full 9.2-channel array (incl. front height/width)
• Subwoofer Outputs: 2 independent
• Zone Outputs: Zone 2 & Zone 3 pre-outs

Connectivity & Control

• Network: Ethernet (streaming & internet radio)
• USB: Front & rear (media playback / updates)
• Control Ports: RS232, IR in/out, 12V triggers

Video Section

• HDMI Switching: Full HD video and audio switching
• Component / Composite / S-Video: Multiple legacy inputs and outputs
• Component Bandwidth: up to 100 MHz

Physical

• Dimensions (W × H × D): 435 × 198.5 × 453.5 mm
• Weight: 14.0 kg
• Power Consumption: ~110W

Performance & Positioning

• Processing flexibility (9.2 channels with height/width expansion)
• System scalability via external amplification
• Extensive connectivity, including balanced outputs
• THX-certified performance for large rooms

Sonically, units like this typically deliver clean, controlled decoding with strong channel separation, while leaving the final character of the system largely dependent on the chosen power amplifiers.

A serious home theatre processor from the era when separates still defined high-performance cinema systems—built for flexibility, scale, and system integration.

Condition: Good

Colour: Black

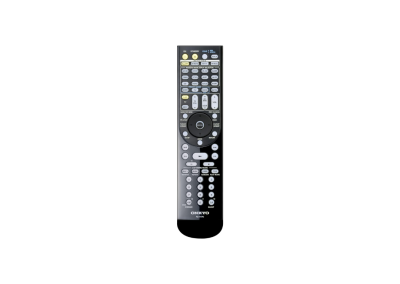

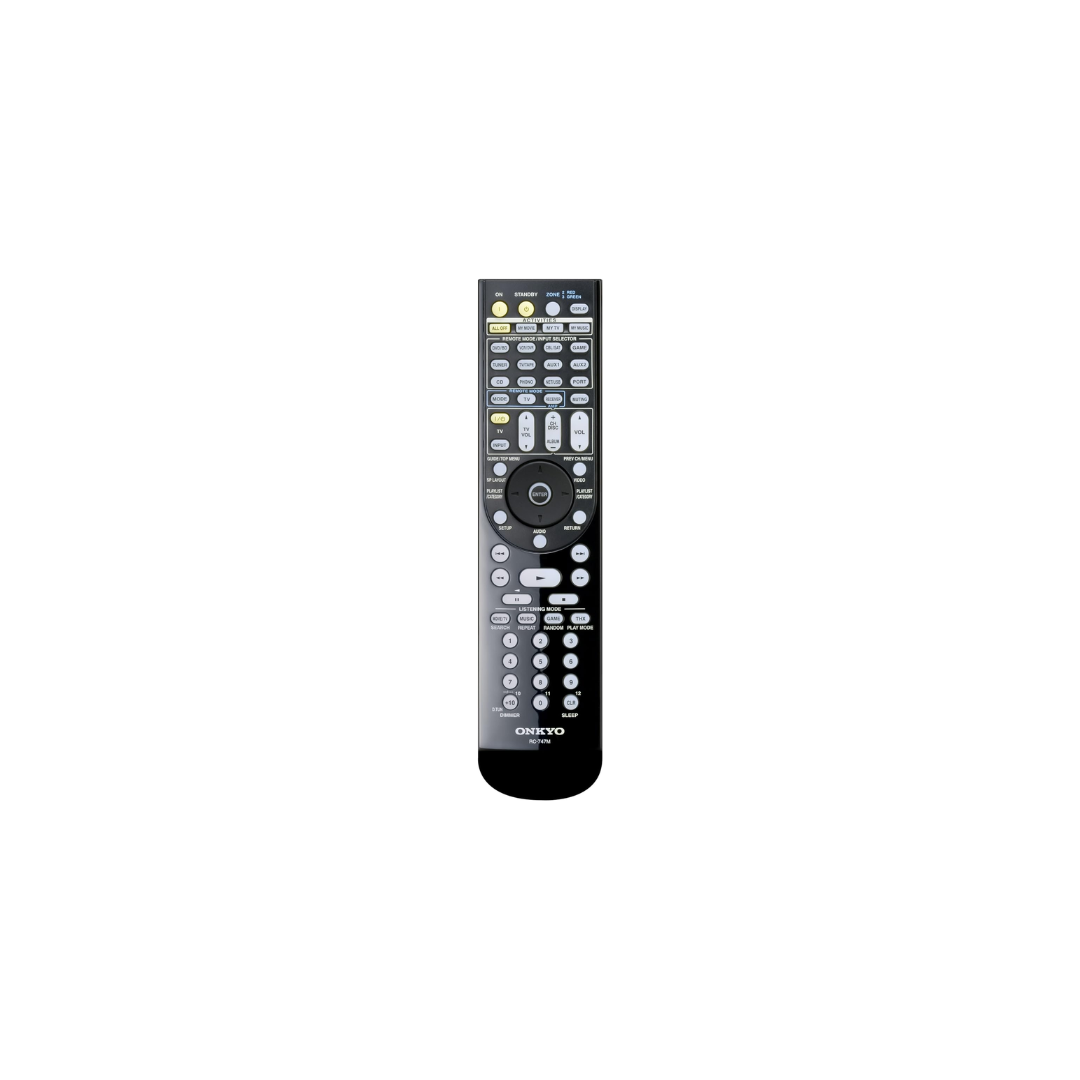

Note: Unit includes remote, manual and original packaging
