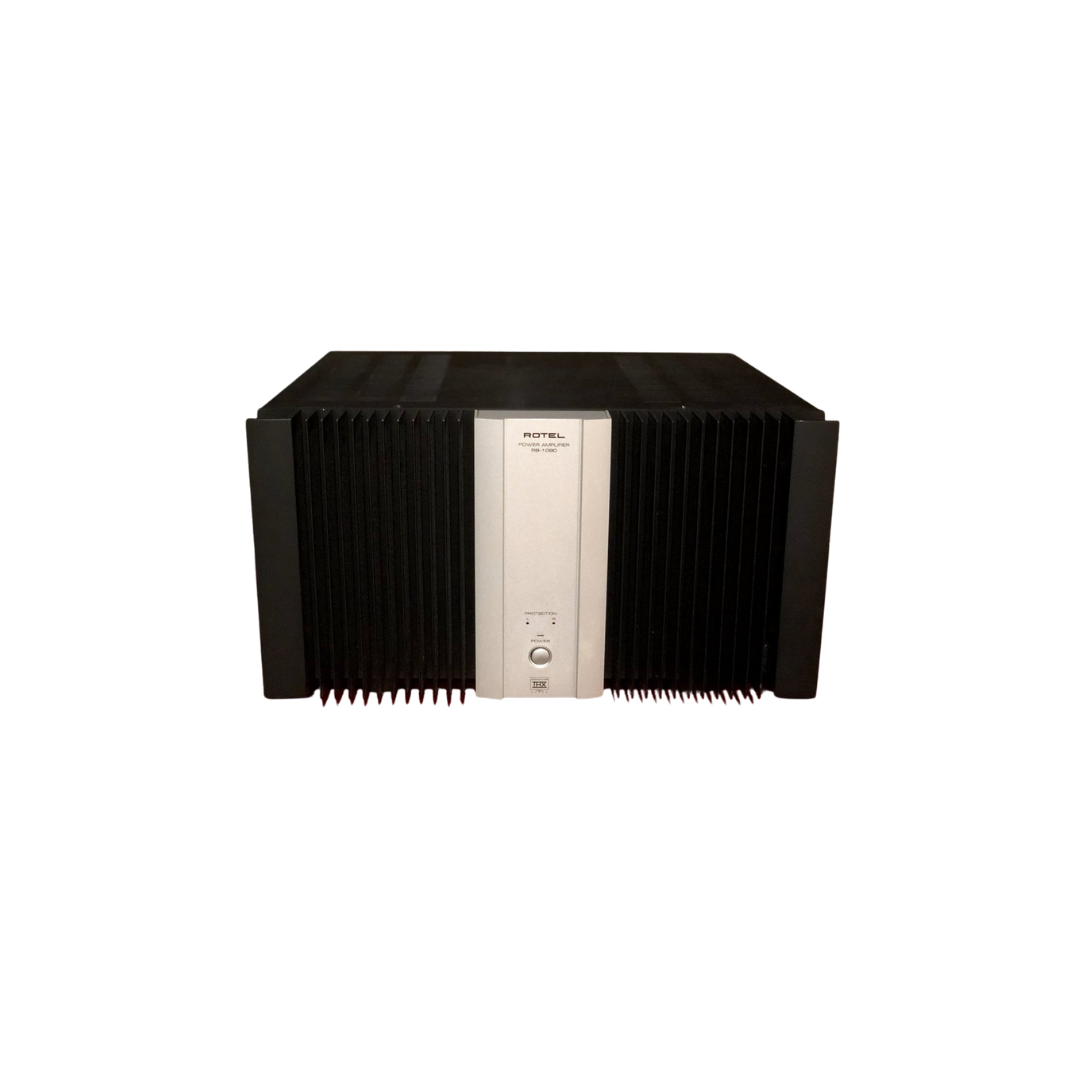

The Rotel RB-1090 remains one of the most iconic amplifiers ever produced by Rotel—a massively engineered stereo power amplifier designed around high-current delivery, dual-mono architecture, and uncompromising loudspeaker control. Built during a period when amplifier design prioritised raw power reserves and robust engineering, the RB-1090 established itself as a genuine high-end contender far beyond its original price category.
At its core, the RB-1090 is effectively two independent mono amplifiers sharing a single chassis, each channel supported by its own substantial power supply. Rotel equipped the amplifier with dual 1.25kVA toroidal transformers and large slit-foil capacitor banks, enabling exceptional current capability and stability into demanding speaker loads.
The design focuses not merely on wattage figures, but on maintaining composure and authority under real-world conditions. Stable into 2Ω loads and capable of delivering over 1000 watts peak power, the RB-1090 became especially respected for driving difficult loudspeakers including large floorstanders and electrostatic designs.
Specifications
- Type: Stereo power amplifier
- Amplifier Class: Class AB
- Continuous Power Output:
- 380W per channel into 8Ω
- 700W per channel into 4Ω
(20Hz–20kHz, <0.03% THD)
- Peak Power Capability: Over 1000W into 2Ω loads
- Frequency Response: 10Hz – 100kHz (±1dB)
- Total Harmonic Distortion: <0.03%
- Intermodulation Distortion: <0.03%
- Damping Factor: 1000
- Signal-to-Noise Ratio: 125dB (IHF A-weighted)
- Input Impedance / Sensitivity: 33kΩ / 1.8V
- Speaker Load Impedance: 4Ω minimum

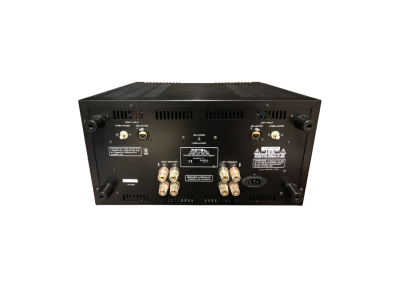

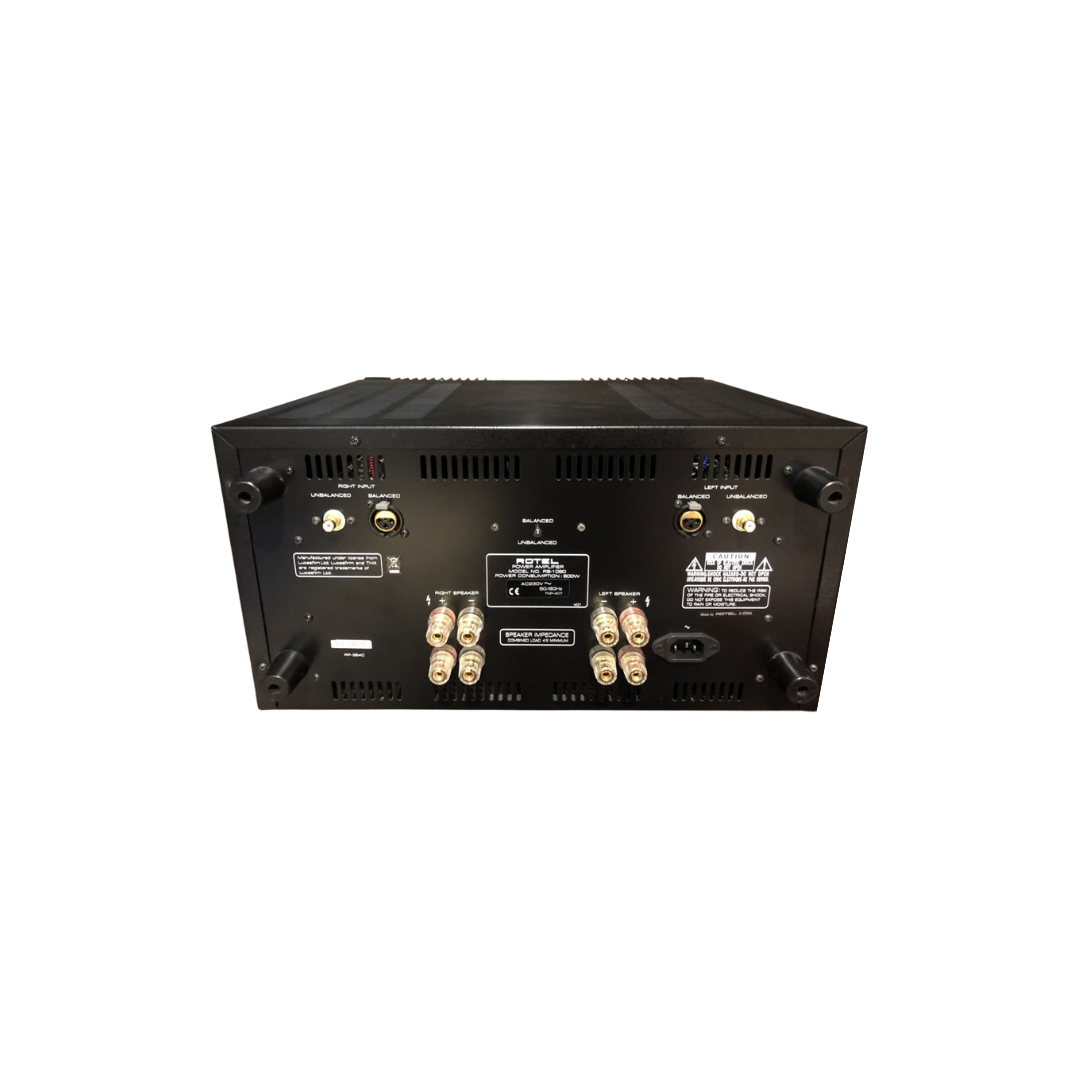

- Inputs:
- Balanced XLR
- Single-ended RCA
- Speaker Outputs: Dual 5-way binding posts (bi-wire capable)
- Power Supply:
- Dual independent power supplies
- 2 × 1.25kVA toroidal transformers
- Slit-foil storage capacitors
- THX Certification: THX Ultra certified
- Power Consumption: 800W
- Dimensions: approx. 440 × 240 × 398 mm
- Weight: approx. 38 kg / 84 lbs
In performance terms, the RB-1090 is renowned for its combination of effortless power, immense bass control, and dynamic realism. Owners and reviewers consistently describe the amplifier as delivering a presentation that feels authoritative yet surprisingly refined, with excellent grip over difficult loudspeaker loads.
Its immense physical construction became part of its identity, featuring oversized heatsinks, massive transformers, and even integrated rear caster wheels to assist with positioning due to its substantial weight.
More than two decades after its introduction, the RB-1090 remains highly regarded among enthusiasts for its ability to combine high-current drive capability with musical engagement and long-term reliability.
A true high-current powerhouse—built for demanding loudspeakers, large-scale dynamics, and uncompromising stereo performance.
