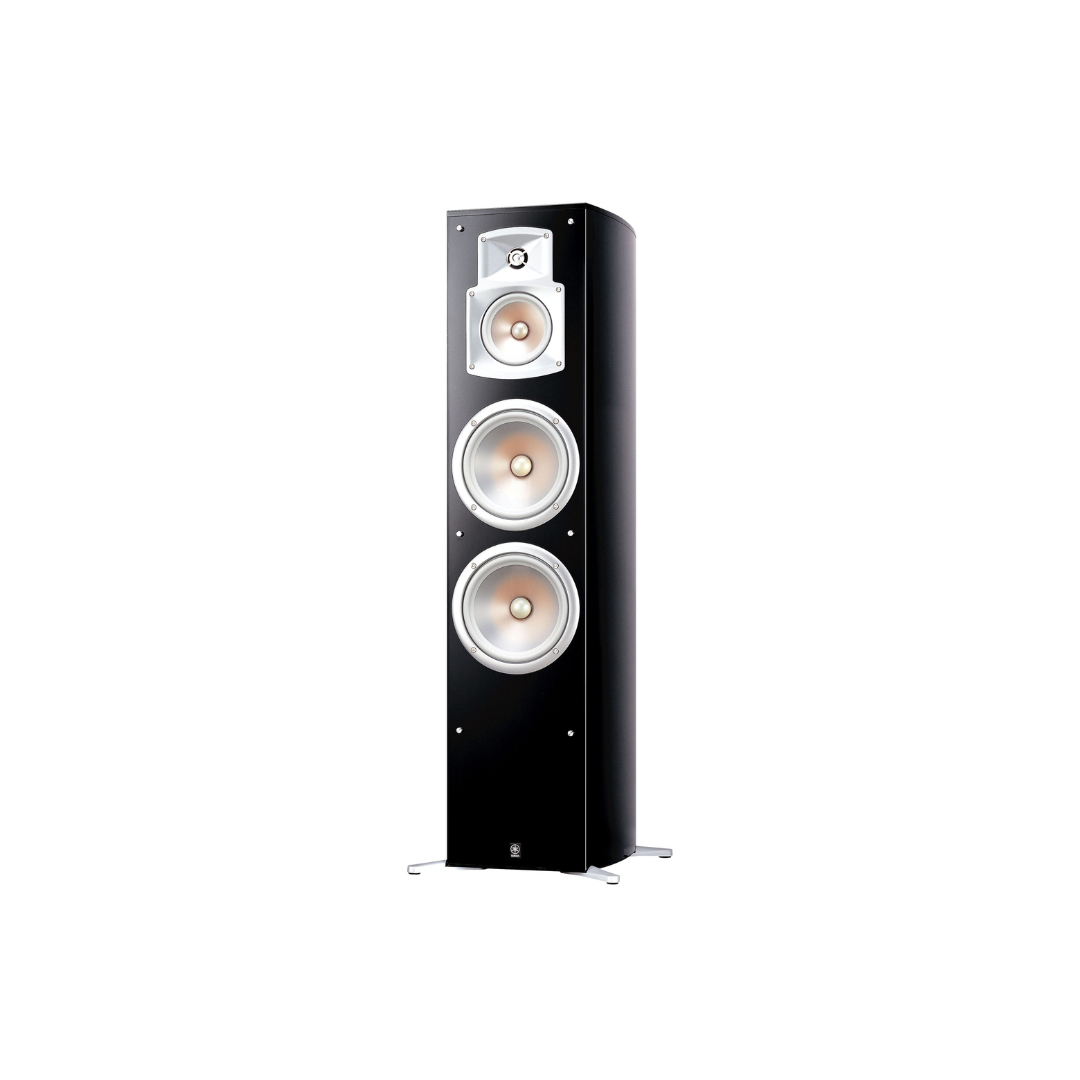

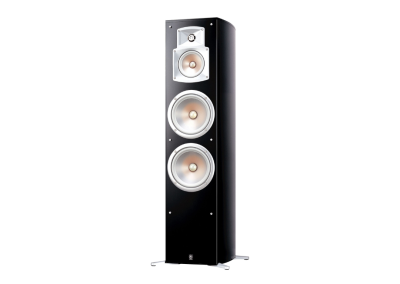

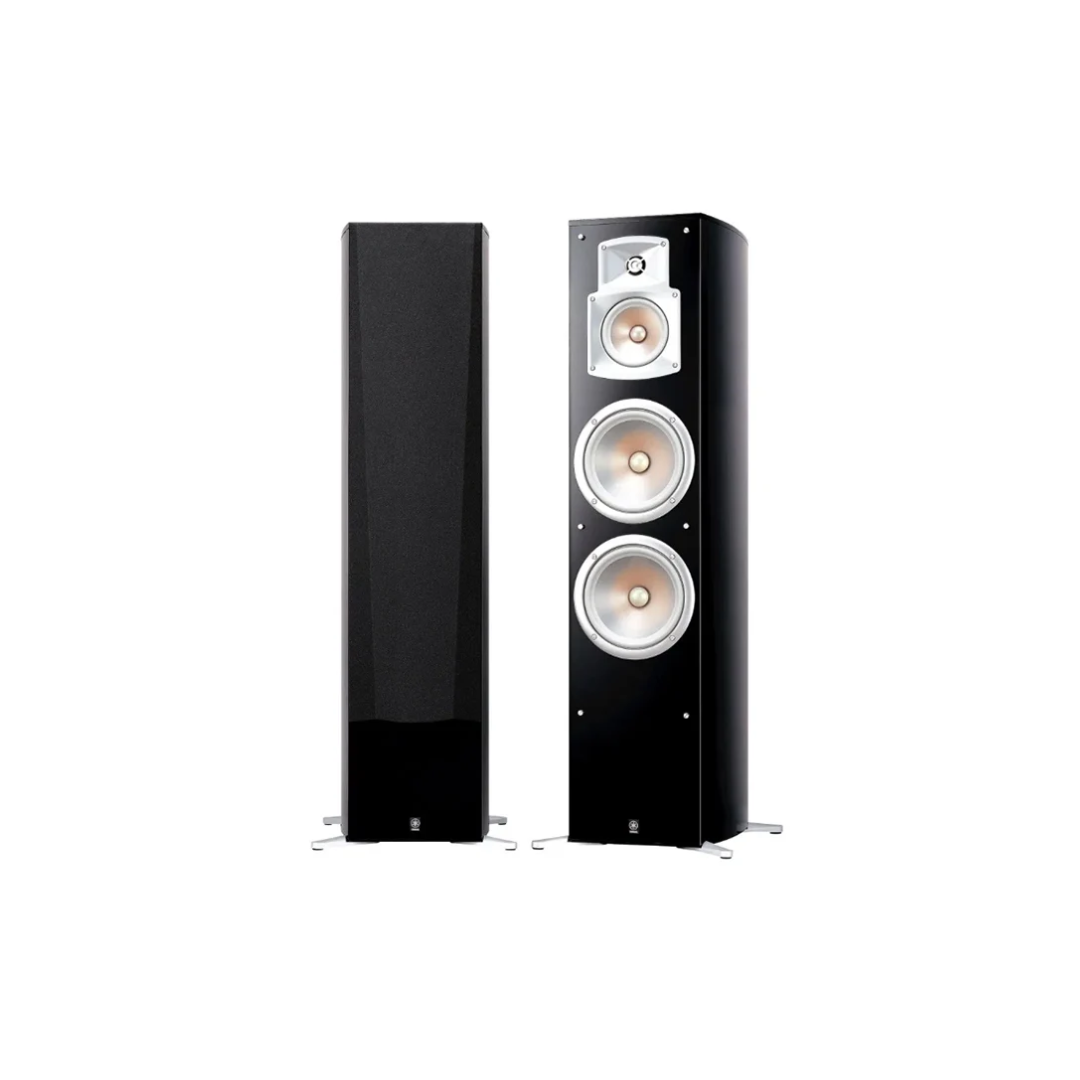

Yamaha Ns-777 Loudspeakers
The Yamaha NS-777 is a 3-way, 4-speaker bass-reflex floor-standing loudspeaker designed for front-channel use in home theatre and music systems. It combines Yamaha’s Polymer-injected Mica Diaphragm (PMD) woofer technology with waveguide-horn midrange and tweeter drivers.
The NS-777 features two 8-inch PMD cone woofers, a 5-inch cone midrange driver and a 1-inch aluminium dome tweeter. Yamaha’s waveguide horns are used for both the midrange and tweeter, while the cabinet incorporates magnetic shielding and bi-wiring terminals.
With a published frequency response of 30Hz–35kHz, nominal input power of 100W and maximum input power of 250W, the NS-777 is designed to provide broad-range reproduction from a substantial floor-standing enclosure.
General Specifications
Recommended Usage: Front speakers
Type: 3-way bass-reflex floor-standing speaker system
Magnetic Shielding: Yes
Impedance: 6 ohms
Driver Complement
Woofers: 2 x 20cm (8″) PMD cone
Midrange: 1 x 13cm (5″) cone with waveguide horn
Tweeter: 1 x 2.5cm (1″) aluminium dome with waveguide horn
Performance
Frequency Response: 30Hz – 35kHz
Sensitivity: 89dB / 2.83V / 1m
Nominal Input Power: 100W
Maximum Input Power: 250W
Crossover Frequencies: 1kHz / 4kHz
Cabinet & Construction
Enclosure: Bass reflex
Bass Reflex Ports: Single port
Cabinet Design: Elliptical Form
Finish: High-gloss black piano finish
Internal Wiring: Monster Cable™
Connectivity

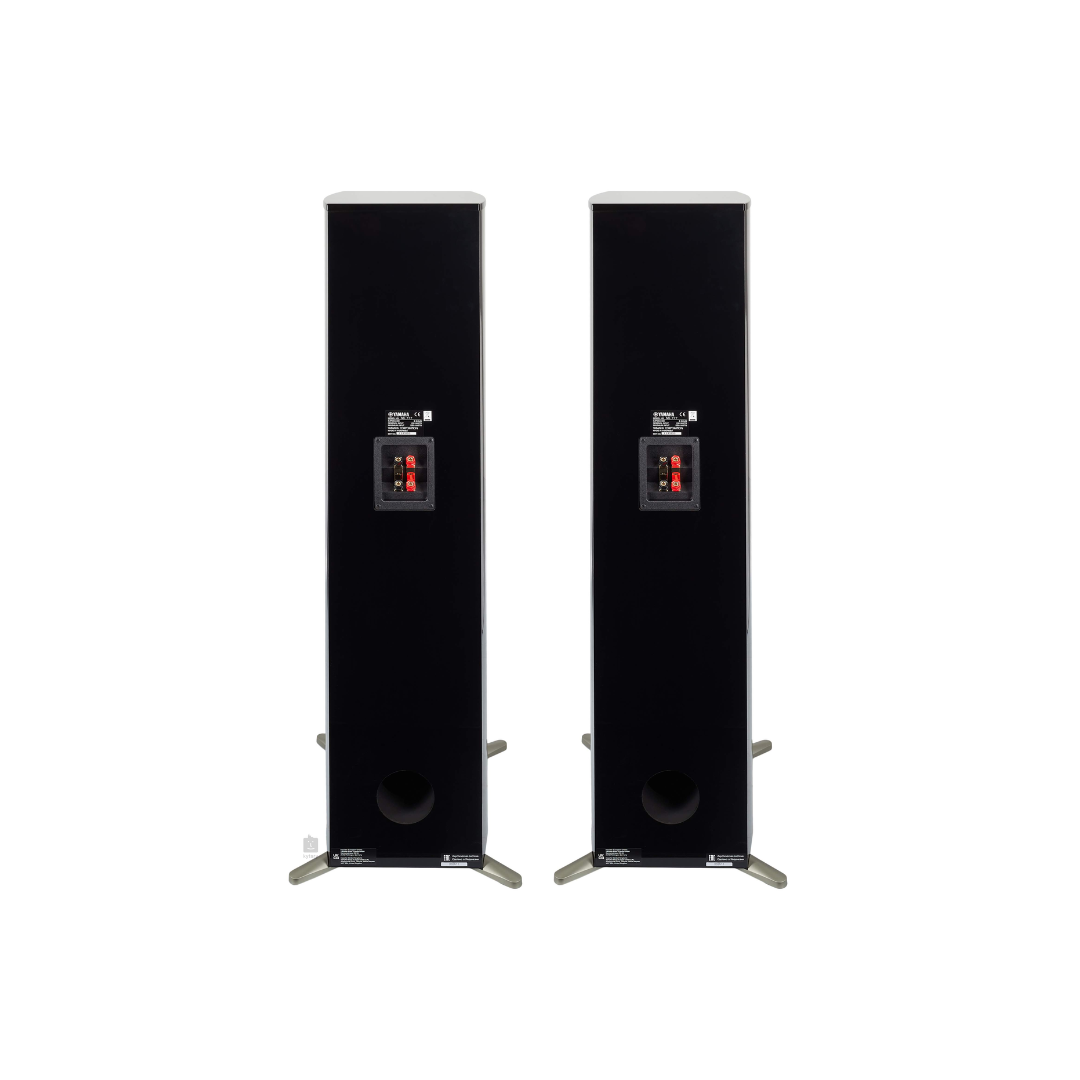

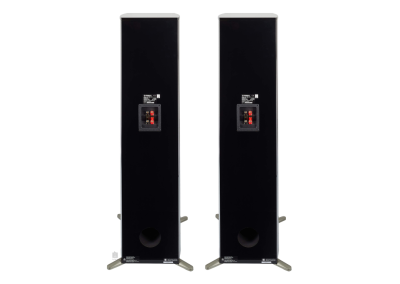

Speaker Terminals: Gold-plated brass extruded terminals
Bi-Wiring: Yes
Conclusion
The Yamaha NS-777 combines Yamaha’s established loudspeaker engineering with a substantial floor-standing design, offering a three-way configuration with dual 8-inch PMD woofers, a dedicated midrange and aluminium-dome tweeter. Its waveguide-horn technology, bass-reflex enclosure and broad 30Hz–35kHz frequency response make it a versatile loudspeaker for both music and home theatre applications.
With its high-gloss piano finish, bi-wiring capability and substantial driver complement, the NS-777 offers a combination of performance, flexibility and distinctive Yamaha design. It remains a capable choice for listeners seeking a full-range floor-standing loudspeaker with the scale and presentation associated with a larger cabinet.
Condition: Fair – Vinyl warped on one side of loudspeaker
Colour: Piano Black
Note: Product does not include additional accessories or original packaging.
* Please contact sales consultant for images of warped side panel
R6,550.00
