In high-end analogue playback, the pursuit of better sound often leads to increasingly complex solutions. Yet, more often than not, the greatest gains come not from changing components, but from allowing them to perform as they were always intended to. The Colossus headshell from WAM Engineering is a rare example of exactly that philosophy in practice.
Designed specifically for the Kuzma 4Point, 4Point9 and Ref313 tonearms, the Colossus is not positioned as an alternative to the standard Kuzma headshell — widely regarded as one of the finest available — but as a significant, performance-driven evolution. One that focuses on a single goal: removing mechanical limitations at the very front end of the analogue chain.
A Foundation Built on Measurement, Not Assumption
WAM Engineering has long been associated with precision tools that allow vinyl enthusiasts to measure, understand, and optimise their systems. Under the direction of J.R. Boisclair, and building on the legacy of Walenty Malewicz, the company’s approach remains firmly rooted in science rather than subjectivity. This philosophy carries directly into the Colossus.
Unlike conventional upgrades, the Colossus is offered exclusively to clients who have had their cartridge analysed by WAM Engineering. This is not a marketing exercise, but a prerequisite. Cartridge alignment tolerances — particularly angular errors — can vary significantly, even within manufacturer specifications. Without addressing these variables first, any downstream improvement risks being masked or misinterpreted – only once geometry is verified and corrected does the Colossus enter the equation.
At its core, the Colossus is a study in mass and rigidity. Machined from solid brass, it introduces a substantial increase in structural stability at the cartridge interface. The result is not a change in tonal character, but a reduction in mechanical interference. By stabilising the cantilever’s pivot point, the cartridge is able to operate with greater precision and consistency.
In listening terms, this translates into a markedly lower noise floor and a simultaneous expansion of performance across multiple parameters. Clarity, image focus, soundstage scale, bass weight, and transient response all improve — not as isolated effects, but as part of a more coherent and effortless presentation.
Geometry, Control, and Tracking Stability

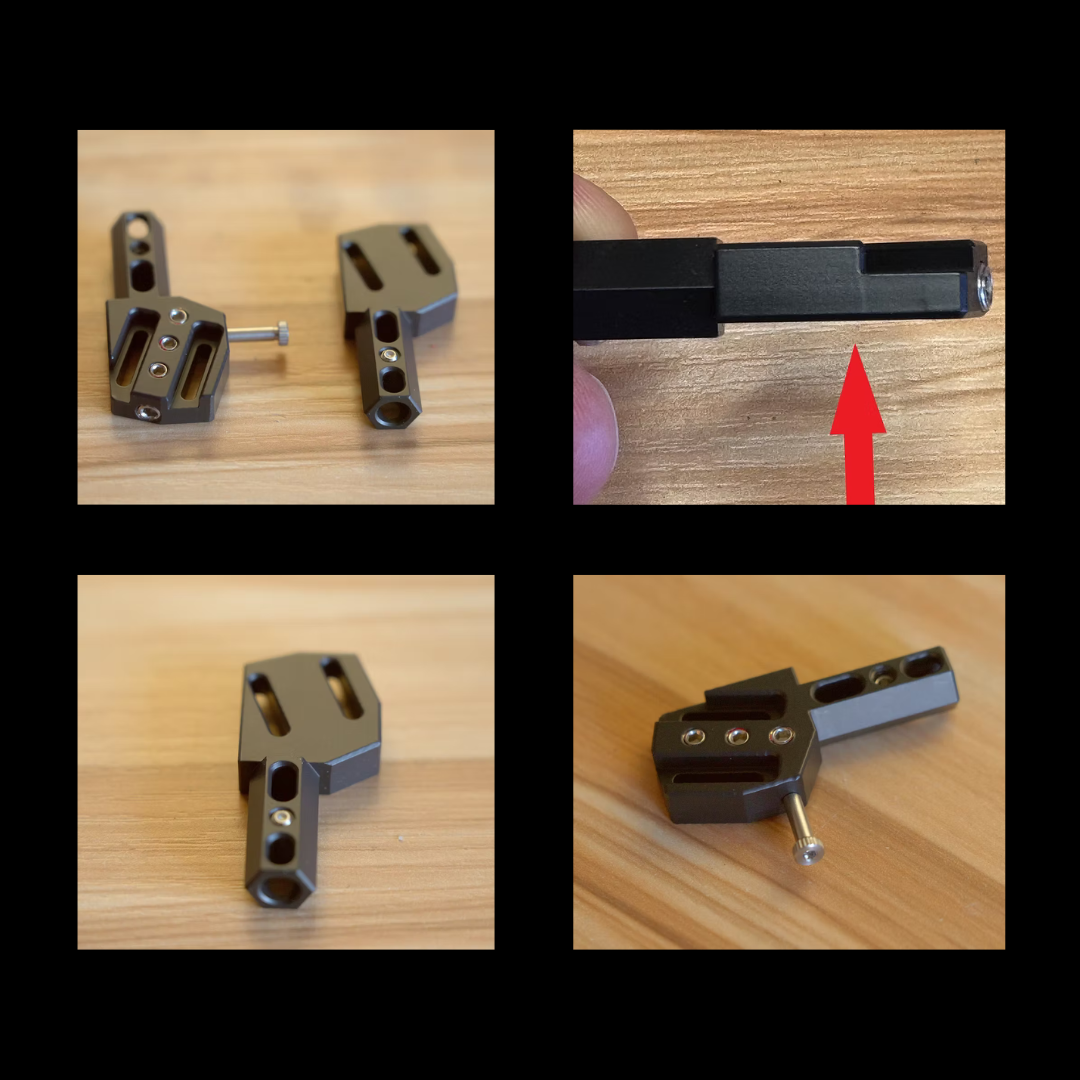

Beyond mass and rigidity, the Colossus introduces a subtle but significant geometric refinement. A 4mm vertical offset on the underside of the headshell lowers the effective bearing position relative to the record surface. This adjustment improves tracking stability, particularly in highly modulated grooves, and opens the door to more precise optimisation of vertical tracking force. The result is greater control under demanding conditions, without compromising delicacy or detail.
Extensive spectrographic analysis also informed the development of an internal damping system. A proprietary viscoelastic compound reduces high-frequency resonance above 2kHz, further contributing to the sense of composure and control that defines the Colossus presentation.
The requirement for cartridge analysis before purchase is, for some, unexpected. Yet it is entirely consistent with the Colossus philosophy. By ensuring that the cartridge is correctly aligned and operating within optimal parameters, WAM Engineering is effectively safeguarding the performance of the entire system. The goal is not to sell a component, but to deliver a result.
The Point Where Setup Becomes Sound
The Colossus is not about changing the character of your system, but about allowing it to perform without constraint. By combining precise measurement, optimised geometry, and exceptional mechanical stability, it reveals what is already present within your cartridge and tonearm — with greater clarity, control, and ease. For those seeking to move beyond assumption and unlock true performance, the Colossus represents a fundamentally different, and highly rewarding, approach.
